USB3320C-EZK-TR - Microchip

Description: Highly Integrated Full Featured Hi-Speed USB 2.0 ULPI%D Transceiver

Download USB3320C-EZK-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

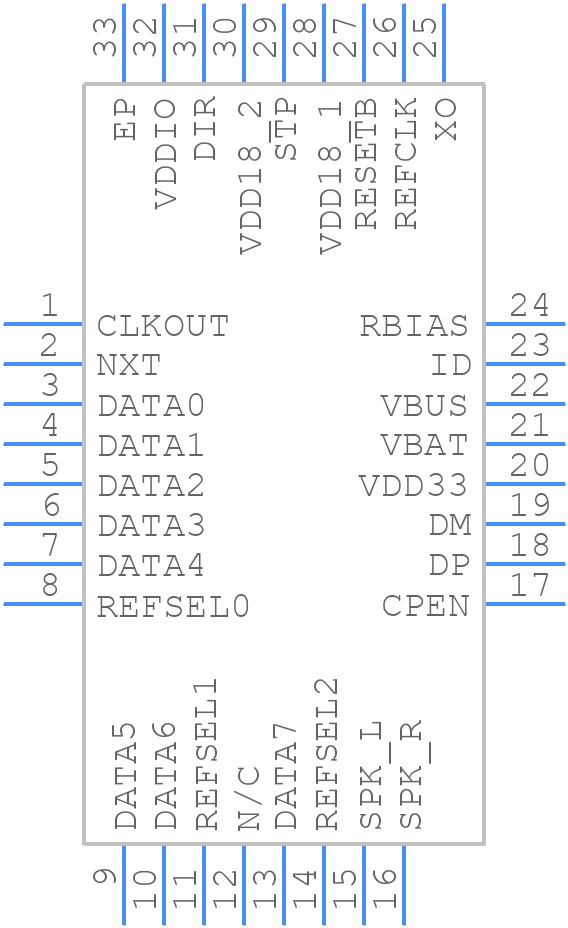

Symbol
USB3320C-EZK-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
USB3320C-EZK-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 Pin QFN
click to zoom
3D Models
USB3320C-EZK-TR - Microchip - 3D model - Quad Flat No-Lead - 32 Pin QFN
click to zoom

USB3320C-EZK-TR Details

  • Manufacturer Part Number:

    USB3320C-EZK-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    VQFN-32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3 V SUPPLY

  • Bus Compatibility:

    USB

  • Clock Frequency-Max:

    60 MHz

  • External Data Bus Width:

    5

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    2 V

  • Supply Voltage-Min:

    1.6 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USB3320C-EZK-TR Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for optimal performance. Microchip recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces short and away from noise sources. A reference design is available in the Microchip documentation.
  • To ensure EMC compliance, follow the guidelines in the Microchip documentation, including using a shielded cable, minimizing loop areas, and using a common mode filter. Additionally, ensure that the PCB layout and component placement are optimized for EMC.
  • The USB3320C-EZK-TR supports cable lengths up to 3 meters, but this can be extended up to 5 meters with the use of active cables or repeaters. However, the maximum cable length may vary depending on the specific application and environment.
  • The USB3320C-EZK-TR has an integrated voltage regulator, but it's recommended to use an external voltage regulator to ensure stable power supply. Additionally, follow the power management guidelines in the Microchip documentation to ensure efficient power consumption.
  • The USB3320C-EZK-TR has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a thermal pad or heat sink, and follow the thermal management guidelines in the Microchip documentation to prevent overheating.
