USB3320C-EZK-TR - SMSC

Description: highly Intergrated full featured high speed USB 2.0 ULPI 32 Pin QFN

Download USB3320C-EZK-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

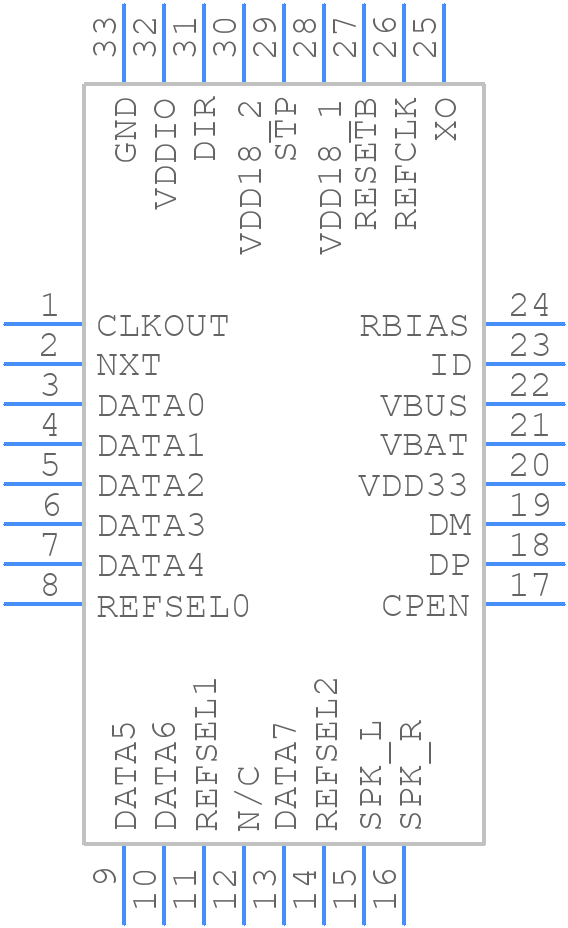

USB3320C-EZK-TR - SMSC - PCB symbol
click to zoom
PCB Footprints
USB3320C-EZK-TR - SMSC PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32- PIN QFN
click to zoom
3D Models
USB3320C-EZK-TR - SMSC - 3D model - Quad Flat No-Lead - 32- PIN QFN
click to zoom

USB3320C-EZK-TR Details

  • Manufacturer Part Number:

    USB3320C-EZK-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, 0.90 MM HEIGHT, ROHS COMPLIANT, QFN-32

  • Pin Count:

    32

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    SMSC

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

USB3320C-EZK-TR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the USB3320C-EZK-TR is -40°C to 85°C.
  • To configure the USB3320C-EZK-TR for high-speed mode, you need to set the HS_EN pin high and ensure that the device is connected to a high-speed capable USB host.
  • The maximum cable length supported by the USB3320C-EZK-TR is 3 meters for high-speed mode and 5 meters for full-speed mode.
  • To implement power management with the USB3320C-EZK-TR, you can use the SUSPEND pin to put the device into a low-power state when not in use. You can also use the VBUS pin to detect the presence of a USB host and adjust power consumption accordingly.
  • The maximum current that the USB3320C-EZK-TR can supply to a downstream device is 500mA.
