A good PCB layout for the USB3321C-GL-TR involves keeping the USB traces as short as possible, using a solid ground plane, and minimizing vias and layer changes. It's also recommended to use a common mode filter and a shielded cable to reduce EMI.
To ensure compliance with USB 2.0 specifications, follow the guidelines outlined in the USB 2.0 specification document, and use the USB3321C-GL-TR in conjunction with a certified USB 2.0 compliant device controller. Additionally, perform thorough testing to ensure that your design meets the required specifications.
The USB3321C-GL-TR has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the device. Also, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
To troubleshoot issues with the USB3321C-GL-TR, start by checking the power supply voltage, signal integrity, and PCB layout. Use oscilloscopes and logic analyzers to debug the signals. Also, consult the datasheet, application notes, and Microchip's technical support resources for guidance.
The USB3321C-GL-TR has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-safe materials, handle devices by the body, and use anti-static wrist straps or mats to prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
USB3321C-GL-TR Overview

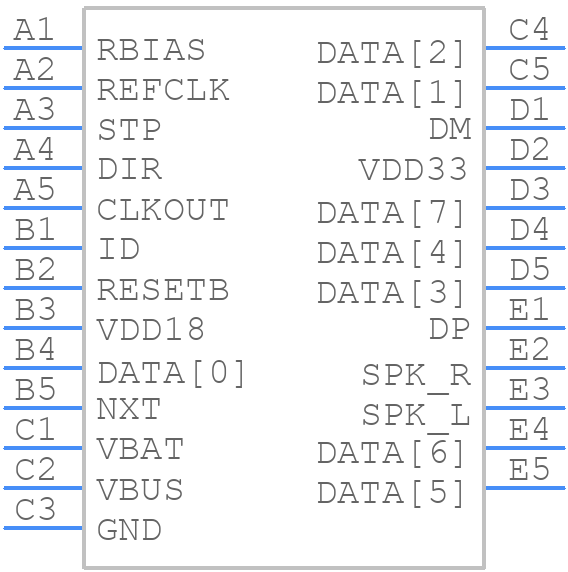

Use the download button to access the USB3321C-GL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USB33,
or try a keyword search, such as Bus Controllers
