USB3322C-GL-TR - Microchip

Description: Microchip USB3322C-GL-TR, USB Transceiver, USB 2.0, 1.8 V, 3.3 V, 25-Pin WLCSP

Download USB3322C-GL-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

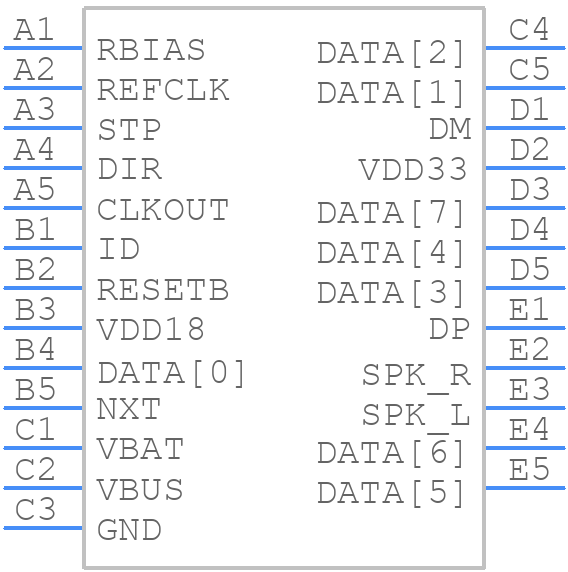

USB3322C-GL-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
USB3322C-GL-TR - Microchip PCB footprint - BGA - BGA - 25WLCSP, 2.0 X 2.0MM BODY, 0.4MM PITCH
click to zoom
3D Models
USB3322C-GL-TR - Microchip - 3D model - BGA - 25WLCSP, 2.0 X 2.0MM BODY, 0.4MM PITCH
click to zoom

USB3322C-GL-TR Details

  • Manufacturer Part Number:

    USB3322C-GL-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    WLCSP-25

  • Pin Count:

    25

  • Manufacturer Package Code:

    WLCSP-25

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Bus Compatibility:

    UART; USB

  • Clock Frequency-Max:

    27 MHz

  • Drive Interface Standard:

    USB

  • External Data Bus Width:

    7

  • JESD-30 Code:

    S-PBGA-B25

  • JESD-609 Code:

    e1

  • Length:

    1.97 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA25,5X5,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.62 mm

  • Supply Current-Max:

    29.4 mA

  • Supply Voltage-Max:

    2 V

  • Supply Voltage-Min:

    1.6 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.97 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USB3322C-GL-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the USB3322C-GL-TR involves keeping the USB traces as short as possible, using a solid ground plane, and minimizing vias and layer changes. It's also recommended to use a common mode filter and a shielded cable to reduce EMI.
  • To ensure compliance with USB 3.2 Gen 2 specifications, follow the guidelines outlined in the USB 3.2 specification, use a certified USB 3.2 cable, and perform thorough testing of your design, including signal integrity and compliance testing.
  • The USB3322C-GL-TR has a typical power consumption of 150mA. Thermal considerations include keeping the device junction temperature below 125°C, using a heat sink if necessary, and ensuring good airflow around the device.
  • To implement a robust and reliable USB 3.2 Gen 2 interface, follow best practices for PCB design, use a high-quality USB connector, and ensure that your design meets the USB 3.2 specification. Additionally, perform thorough testing, including stress testing and environmental testing.
  • Key considerations for EMI and RFI mitigation when using the USB3322C-GL-TR include using a shielded cable, minimizing loop areas, using a common mode filter, and ensuring good PCB layout practices, such as keeping signals away from the edge of the board.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

USB3322C-GL-TR Overview

Use the download button to access the USB3322C-GL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USB33, or try a keyword search, such as Bus Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
