USB3343-CP-TR footprint, schematic symbol and 3D model by SMSC

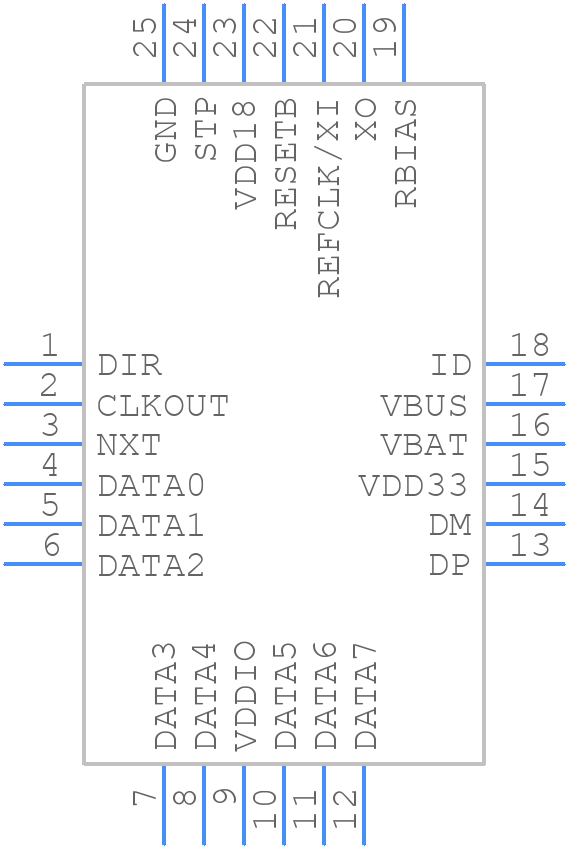

Symbol

PCB Footprints

3D Models

USB3343-CP-TR Details

Manufacturer Part Number:
USB3343-CP-TR
Part Life Cycle Code:
Transferred
Package Description:
4 X 4 MM, 0.90 MM HEIGHT, 0.50 MM PITCH, ROHS COMPLIANT, QFN-24
HTS Code:
8542.39.00.01
Manufacturer:
SMSC
JESD-30 Code:
S-XQCC-N24
Length:
4 mm
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
1 mm
Supply Voltage-Nom:
1.8 V
Surface Mount:
YES
Telecom IC Type:
ETHERNET TRANSCEIVER
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
4 mm

The maximum cable length supported is 3 meters (10 feet) for USB 2.0 and 1 meter (3.3 feet) for USB 3.0, assuming a good quality cable and proper termination.
The USB3343-CP-TR is a USB 3.0 capable device, but it can be configured for USB 2.0 operation by pulling the VBUS pin low during power-up. Consult the datasheet for specific configuration details.
The typical power consumption of the USB3343-CP-TR is around 150mA for USB 3.0 operation and 50mA for USB 2.0 operation, but this can vary depending on the specific application and usage.
Yes, the USB3343-CP-TR is compatible with USB OTG devices, but it requires additional circuitry and configuration to support OTG functionality.
The USB3343-CP-TR has built-in overcurrent protection, but it's recommended to add external overcurrent protection circuitry to ensure compliance with USB specifications and to protect the device from damage.

Community Provided

System Verified

Community Approved

Use the download button to access the USB3343-CP-TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like USB33, or try a keyword search, such as Bus Controllers
