USB3346-CP - Microchip

Description: USB Interface IC 19Mhz USB 2.0 ULPI PHY

Download USB3346-CP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

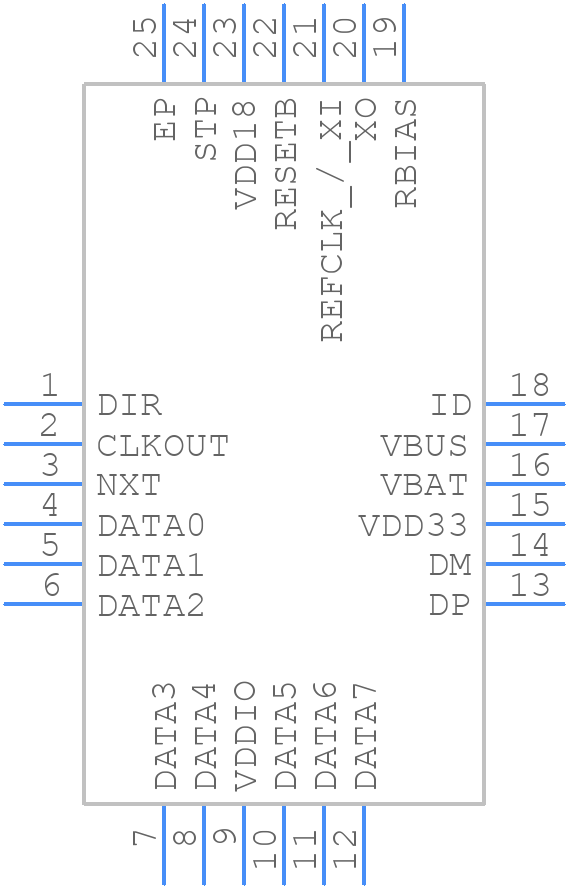

USB3346-CP - Microchip - PCB symbol
click to zoom
PCB Footprints
USB3346-CP - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - USB3346-CP
click to zoom
3D Models
USB3346-CP - Microchip - 3D model - Quad Flat No-Lead - USB3346-CP
click to zoom

USB3346-CP Details

  • Manufacturer Part Number:

    USB3346-CP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    VQFN-24

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Additional Feature:

    IT ALSO REQUIRES 3.3V SUPPLY

  • Bus Compatibility:

    USB, VBUS

  • Clock Frequency-Max:

    19.2 MHz

  • External Data Bus Width:

    8

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
