USB3347-CP - Microchip

Description: Microchip USB3347-CP, USB Transceiver, USB 2.0, 1.8 V, 3.3 V, 24-Pin QFN

Download USB3347-CP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

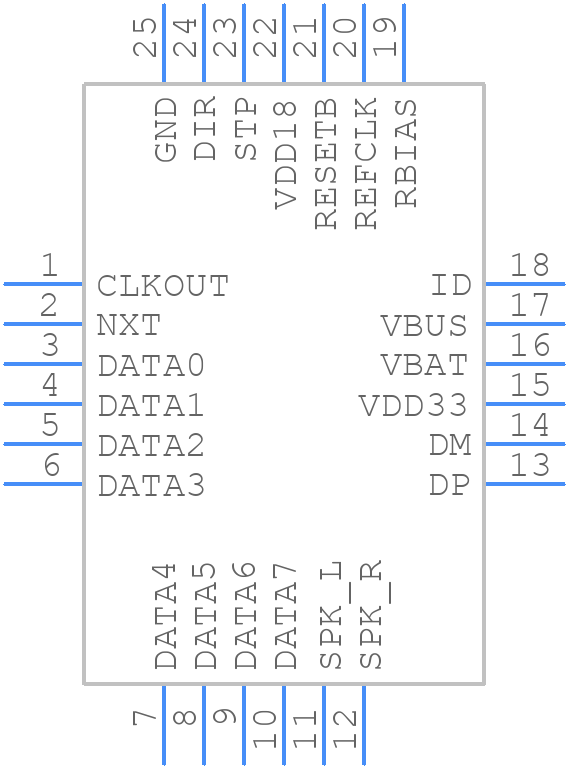

USB3347-CP - Microchip - PCB symbol
click to zoom
PCB Footprints
USB3347-CP - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-pin QFN, 4x4mm Body, 0.5mm Pitch
click to zoom
3D Models
USB3347-CP - Microchip - 3D model - Quad Flat No-Lead - 24-pin QFN, 4x4mm Body, 0.5mm Pitch
click to zoom

USB3347-CP Details

  • Manufacturer Part Number:

    USB3347-CP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    VQFN-24

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Bus Compatibility:

    UART; USB

  • Clock Frequency-Max:

    26 MHz

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    52 mA

  • Supply Voltage-Max:

    2 V

  • Supply Voltage-Min:

    1.6 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
