A good PCB layout for the USB3503A-1-GL-TR involves keeping the USB traces as short as possible, using a solid ground plane, and minimizing the number of vias. It's also recommended to use a common mode filter and a shielded cable to reduce EMI.
To ensure reliable operation of the USB3503A-1-GL-TR in high-temperature environments, it's recommended to follow proper thermal design guidelines, such as using a heat sink, providing adequate airflow, and keeping the device within its specified operating temperature range.
When using the USB3503A-1-GL-TR in a system with multiple USB devices, it's essential to ensure that each device has a unique address, and that the total current drawn from the bus does not exceed the maximum allowed current. Additionally, it's recommended to use a USB hub or a dedicated power supply to ensure reliable operation.
To troubleshoot issues with the USB3503A-1-GL-TR, start by checking the device's power supply, signal integrity, and PCB layout. Use tools like a logic analyzer or an oscilloscope to debug the USB signals. Also, ensure that the device is properly configured and that the firmware is up-to-date.
When using the USB3503A-1-GL-TR in a system with a battery-powered device, it's essential to consider power management, such as using a low-power mode or a power switch to minimize power consumption. Additionally, ensure that the device can handle the voltage and current requirements of the battery-powered device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
USB3503A-1-GL-TR Overview

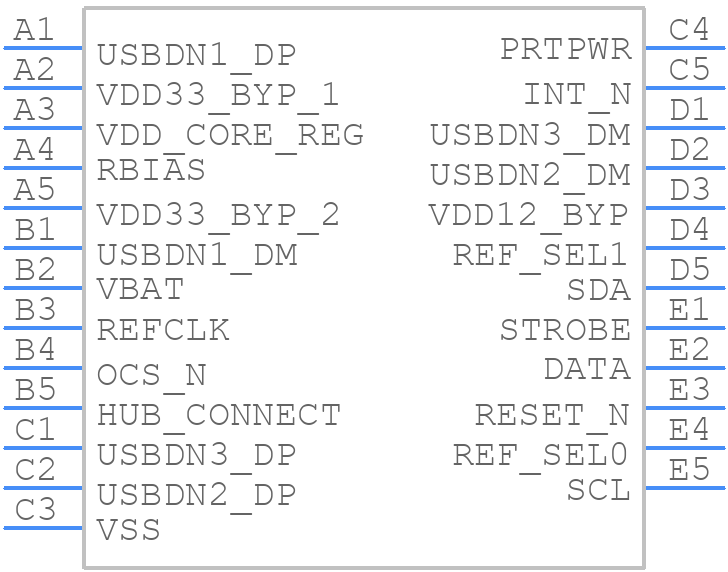

Use the download button to access the USB3503A-1-GL-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USB35,
or try a keyword search, such as Bus Controllers
