The recommended PCB layout and footprint can be found in the Global Connector Technology's application note or by contacting their technical support team. It's essential to follow the recommended layout to ensure proper signal integrity and to prevent electromagnetic interference (EMI).
To ensure reliable USB signal integrity, follow the USB 2.0 specification guidelines for trace impedance, length, and termination. Additionally, use a common mode filter or a USB signal repeater if the signal needs to travel a long distance. Proper PCB layout, routing, and shielding are also crucial for maintaining signal integrity.
The maximum current rating for the USB4110-GF-A is 1.5A per pin, which is in line with the USB 2.0 specification. However, it's essential to consider the overall system power requirements and ensure that the connector, PCB, and power delivery system can handle the maximum current demand.
To handle ESD protection for the USB4110-GF-A, consider adding ESD protection devices, such as TVS diodes or ESD arrays, on the USB data lines. Additionally, follow proper PCB design practices, such as using a ground plane, to minimize the risk of ESD damage.
The operating temperature range for the USB4110-GF-A is -40°C to 85°C. However, it's essential to consider the overall system operating temperature range and ensure that the connector and PCB can operate reliably within that range.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
USB4110-GF-A Overview

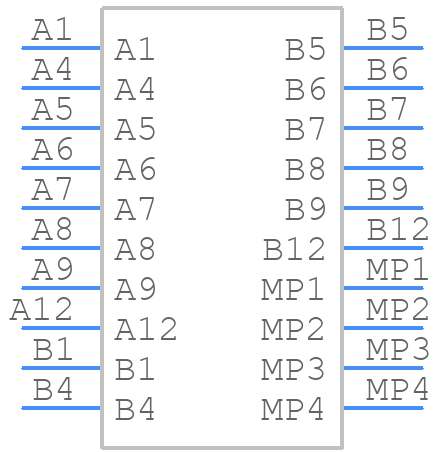

Use the download button to access the USB4110-GF-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USB41,
or try a keyword search, such as Telecom and Datacom Connectors
