The recommended PCB layout and footprint can be found in the Global Connector Technology's application note or design guide, which provides detailed information on pad layout, spacing, and dimensions to ensure proper assembly and functionality.
To ensure reliable USB signal integrity, follow the USB specification guidelines for signal routing, impedance matching, and shielding. Additionally, use high-quality PCB materials, and consider using signal conditioning components such as ferrite beads or common-mode chokes to reduce electromagnetic interference (EMI).
The maximum operating temperature range for the USB4515-GF-A is typically specified as -40°C to 85°C, but it's essential to check the specific datasheet or consult with the manufacturer for the exact temperature range, as it may vary depending on the specific application and environment.
While the USB4515-GF-A is designed to be robust, it's essential to evaluate its suitability for high-vibration or harsh environments. Consider factors such as connector durability, PCB design, and mounting methods to ensure reliable operation. Consult with the manufacturer or a qualified engineer for specific guidance.
To ensure proper ESD protection, follow the USB specification guidelines for electrostatic discharge (ESD) protection. Use ESD protection devices such as TVS diodes or ESD filters, and consider implementing additional protection measures such as ESD shielding or protective coatings on the PCB.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
USB4515-GF-A Overview

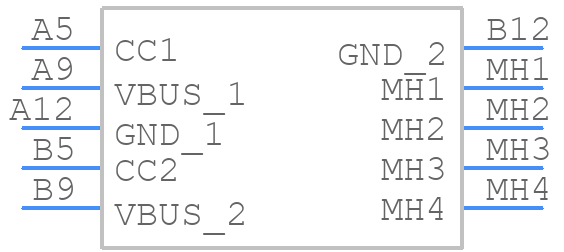

Use the download button to access the USB4515-GF-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like USB45,
or try a keyword search, such as Telecom and Datacom Connectors
