USB4715/Y9X - Microchip

Description: USB Interface IC USB 2.0 4 port Hi Speed Controller

Download USB4715/Y9X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

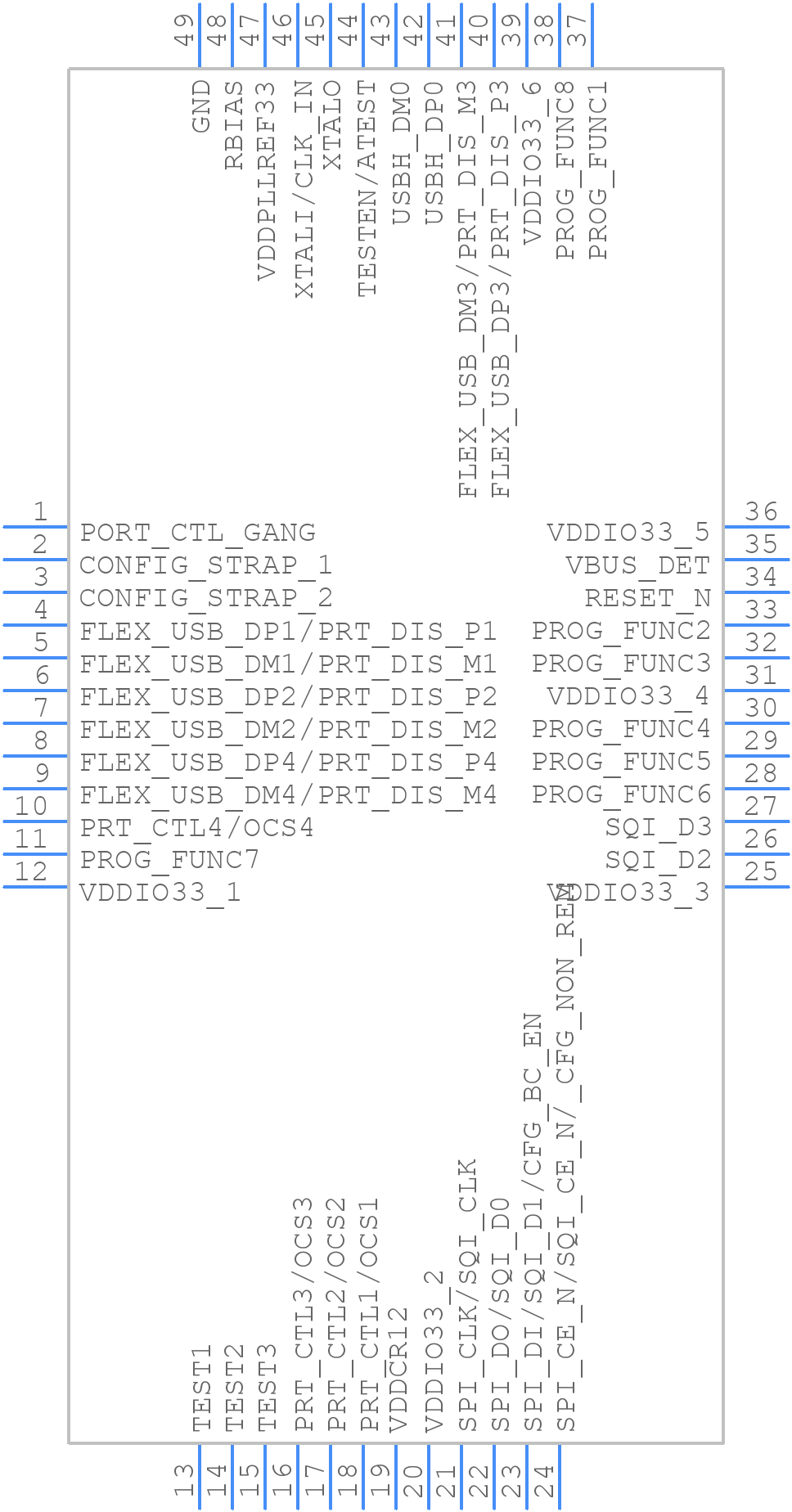

USB4715/Y9X - Microchip - PCB symbol
click to zoom
PCB Footprints
USB4715/Y9X - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - USB4715/Y9X
click to zoom
3D Models
USB4715/Y9X - Microchip - 3D model - Quad Flat No-Lead - USB4715/Y9X
click to zoom

USB4715/Y9X Details

  • Manufacturer Part Number:

    USB4715/Y9X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan, Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Bus Compatibility:

    I2S, SMBUS, SPI, UART, USB

  • Clock Frequency-Max:

    25 MHz

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    167 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS
