USL00-20L-A - KEL CORPORATION

Description: Ultra Fine Pitch (0.4mm), Ultra Low Profile (1mm) IDC Connector for Micro Coaxial Cable (#42 AWG)

Download USL00-20L-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

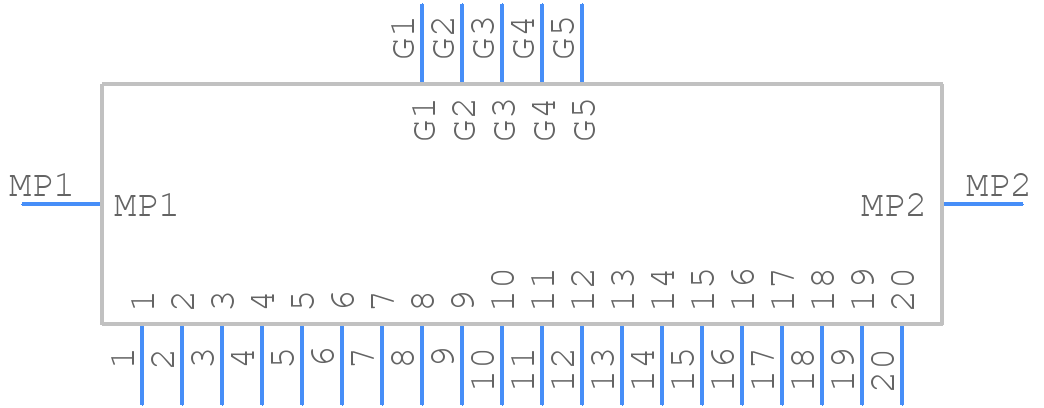

USL00-20L-A - KEL CORPORATION - PCB symbol
click to zoom
PCB Footprints
USL00-20L-A - KEL CORPORATION PCB footprint - Other - Other - USL00-20L-A-2
click to zoom

USL00-20L-A Details

  • Manufacturer Part Number:

    USL00-20L-A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    KEL Corporation

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

USL00-20L-A Overview

Use the download button to access the USL00-20L-A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like USL00, or try a keyword search, such as Headers and Edge Type Connectors
