UT6MA2TCR - ROHM Semiconductor

Description: 30V Nch+Pch Middle Power MOSFET Array N and P-Channel 30V 4A (Ta) 2W (Ta) Surface Mount HUML2020L8

Download UT6MA2TCR Model

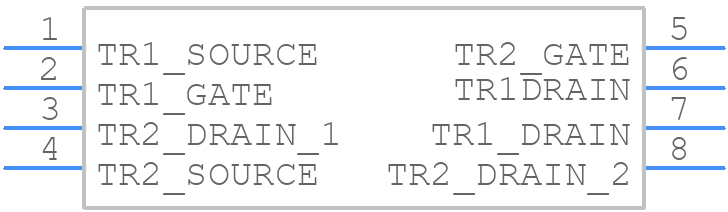

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UT6MA2TCR - ROHM Semiconductor PCB footprint - Other - Other - HUML2020L8 (DUAL)
click to zoom
3D Models
UT6MA2TCR - ROHM Semiconductor  - 3D model - Other - HUML2020L8 (DUAL)
click to zoom

UT6MA2TCR Details

  • Manufacturer Part Number:

    UT6MA2TCR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN2020-8D, 6 PIN

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2016-02-24

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.32

  • Avalanche Energy Rating (Eas):

    6.4 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    4 A

  • Drain-source On Resistance-Max:

    0.08 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    12 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

UT6MA2TCR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for UT6MA2TCR is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF or larger ceramic capacitor for the output capacitor (Cout) and a 1uF or larger ceramic capacitor for the input capacitor (Cin).
  • The maximum output current that UT6MA2TCR can provide is 500mA.
  • To reduce the noise and ripple in the output voltage, it is recommended to use a low-ESR capacitor for Cout and to add a noise filter capacitor (Cf) between the output and ground.
  • The thermal shutdown temperature of UT6MA2TCR is 150°C.
