UV5TZ-390-15 - Bivar

Description: Bivar UV5TZ-390-15, UV LED, 390nm 15 °, 2-Pin Through Hole Package

Download UV5TZ-390-15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UV5TZ-390-15 - Bivar - PCB symbol
click to zoom
PCB Footprints

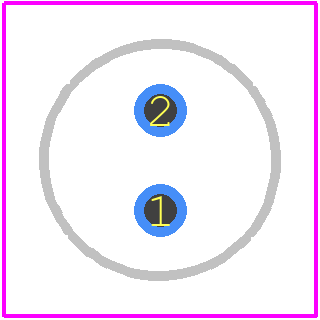

UV5TZ-390-15 - Bivar PCB footprint - Other - Other - UV5TZ-390-15-2
click to zoom
3D Models
UV5TZ-390-15 - Bivar - 3D model - Other - UV5TZ-390-15-2
click to zoom

UV5TZ-390-15 Details

  • Manufacturer Part Number:

    UV5TZ-390-15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Bivar Inc

  • YTEOL:

    6

  • Color:

    PURPLE

  • Configuration:

    SINGLE WITH BUILT-IN ZENER DIODE

  • Forward Current-Max:

    0.02 A

  • Forward Voltage-Max:

    3.6 V

  • Lens Type:

    WATER CLEAR

  • Mounting Feature:

    RADIAL MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -25 °C

  • Optoelectronic Device Type:

    SINGLE COLOR LED

  • Overall Height:

    8.7 mm

  • Packing Method:

    ANTISTATIC POLY BAG

  • Peak Wavelength:

    390 nm

  • Shape:

    ROUND

  • Size:

    5 mm

  • Surface Mount:

    NO

  • T-code:

    T-1 3/4

  • Terminal Pitch:

    2.5 mm

  • Viewing Angle:

    15 deg

UV5TZ-390-15 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, the UV5TZ-390-15 is compatible with lead-free soldering processes. Bivar Inc ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The typical power dissipation of the UV5TZ-390-15 is 0.5W. However, it's essential to consider the specific application and ensure that the component is operated within its recommended power rating to prevent overheating.
  • Yes, the UV5TZ-390-15 is suitable for high-reliability applications. Bivar Inc's products are designed and manufactured to meet the requirements of various industries, including aerospace, defense, and medical devices.
  • The UV5TZ-390-15 has an MSL rating of 1, which means it can withstand normal humidity levels without requiring special handling or storage procedures.
