The recommended PCB footprint for the V10KM120DU-M3/H is a rectangular pad with dimensions of 7.3 mm x 5.3 mm, with a 1.3 mm x 1.3 mm thermal pad in the center. The pad should have a solder mask defined (SMD) and a non-solder mask defined (NSMD) area around the thermal pad.
To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 217°C to 221°C. Apply a small amount of solder paste to the PCB pads, and use a reflow oven or a hot air gun to solder the component. Avoid using excessive solder or flux, as it can cause shorts or damage to the component.
The maximum allowed voltage derating for the V10KM120DU-M3/H is 10% of the rated voltage. For example, if the rated voltage is 1200 V, the maximum allowed voltage derating would be 120 V. Exceeding this derating may reduce the component's reliability or cause premature failure.
The V10KM120DU-M3/H is designed for high-voltage applications, but it may not be suitable for high-frequency applications above 100 kHz. The component's internal construction and lead inductance may cause significant voltage drops and losses at high frequencies. If you need a high-frequency component, consider using a different part number or consulting with a Vishay application engineer.
The V10KM120DU-M3/H has a high power dissipation rating, so proper thermal management is crucial. Ensure good thermal conductivity between the component and the PCB by using a thermal interface material (TIM) and a heat sink. Keep the component away from other heat sources, and ensure good airflow around the component. Monitor the component's temperature and adjust the thermal management accordingly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V10KM120DU-M3/H Overview

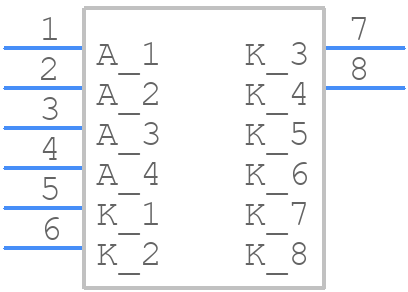

Use the download button to access the V10KM120DU-M3/H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V10KM,
or try a keyword search, such as Rectifier Diodes
