Part Image

V10KM45DUHM3/H - Vishay

Description: VISHAY - V10KM45DUHM3/H - SCHOTTKY RECTIFIER, DUAL, 45V, FLATPAK

Download V10KM45DUHM3/H Model

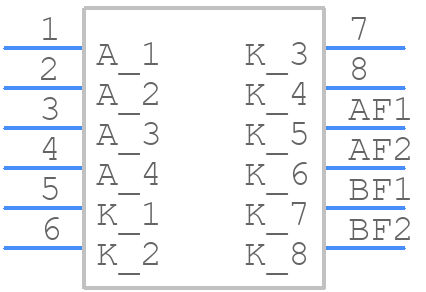

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
V10KM45DUHM3/H - Vishay PCB footprint - Other - Other - V10KM45DUHM3/H-1
click to zoom
3D Models
V10KM45DUHM3/H - Vishay  - 3D model - Other - V10KM45DUHM3/H-1
click to zoom

V10KM45DUHM3/H Details

  • Manufacturer Part Number:

    V10KM45DUHM3/H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2018-10-22

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.2

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.62 V

  • JESD-30 Code:

    R-PDSO-F6

  • Non-rep Pk Forward Current-Max:

    100 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Reference Standard:

    AEC-Q101

  • Rep Pk Reverse Voltage-Max:

    45 V

  • Reverse Current-Max:

    200 µA

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V10KM45DUHM3/H Overview

Use the download button to access the V10KM45DUHM3/H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V10KM, or try a keyword search, such as Rectifier Diodes
