A good PCB layout for the V10P50P should ensure minimal inductance and resistance in the circuit. Keep the leads as short as possible, and use a solid ground plane to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
Choose a fuse holder or clip that is specifically designed for the V10P50P's physical dimensions and current rating. Ensure the holder or clip provides good electrical contact and is rated for the maximum operating temperature of the fuse.
The maximum allowable voltage drop across the V10P50P depends on the specific application and system requirements. As a general guideline, a voltage drop of 1-2% of the nominal system voltage is acceptable. However, it's essential to consult the system design specifications and ensure the voltage drop does not compromise system performance or safety.
The V10P50P is rated for operation up to 125°C. However, it's essential to consider the derating curve and ensure the fuse is not subjected to temperatures above its rating. Additionally, high temperatures can affect the fuse's reliability and lifespan, so it's crucial to consult the datasheet and application notes for guidance.
The V10P50P meets various safety certifications, including UL, CSA, and IEC. Ensure you select the correct fuse variant that meets the specific safety requirements for your application. Consult the datasheet, application notes, and relevant safety standards to ensure compliance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V10P50P Overview

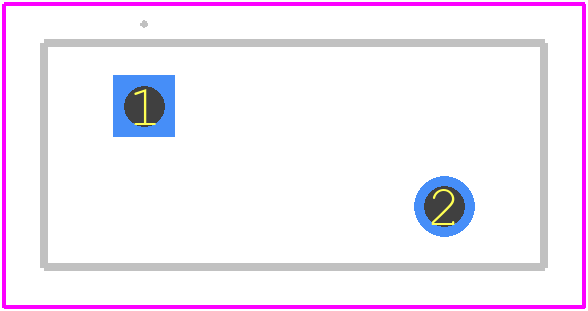

Use the download button to access the V10P50P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V10P5,
or try a keyword search, such as Varistor
