V20KM100-M3/H - Vishay

Description: Schottky Diodes & Rectifiers 20A 100V FLATPAK 5X6 SINGLE

Download V20KM100-M3/H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

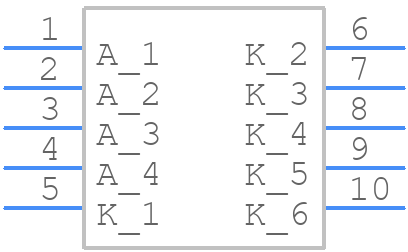

Symbol
V20KM100-M3/H - Vishay - PCB symbol
click to zoom
PCB Footprints
V20KM100-M3/H - Vishay PCB footprint - Other - Other - FlatPAK 5 x 6
click to zoom
3D Models
V20KM100-M3/H - Vishay - 3D model - Other - FlatPAK 5 x 6
click to zoom

V20KM100-M3/H Details

  • Manufacturer Part Number:

    V20KM100-M3/H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.22

  • Additional Feature:

    FREE WHEELING DIODE, LOW POWER LOSS

  • Application:

    EFFICIENCY

  • Case Connection:

    CATHODE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.76 V

  • JESD-30 Code:

    R-PDSO-F8

  • Non-rep Pk Forward Current-Max:

    220 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    165 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Rep Pk Reverse Voltage-Max:

    100 V

  • Reverse Current-Max:

    250 µA

  • Reverse Test Voltage:

    100 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

V20KM100-M3/H Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the V20KM100-M3/H is a rectangular pad with dimensions of 5.08 mm x 3.81 mm, with a 1.27 mm diameter hole in the center for the thermal pad.
  • To ensure proper thermal management, it is recommended to use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and to design the PCB with adequate thermal vias and heat sinks.
  • The maximum allowed voltage derating for the V20KM100-M3/H is 10% of the rated voltage, which is 100 V. Therefore, the maximum allowed voltage derating is 10 V.
  • While the V20KM100-M3/H is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz with proper PCB design and layout considerations.
  • To handle the high inrush current during power-on, it is recommended to use a soft-start circuit or an NTC thermistor in series with the input voltage to limit the inrush current.
