V23079D2001B301 - TE Connectivity

Description: RELAY GENERAL PURPOSE DPDT 2A 5V

Download V23079D2001B301 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

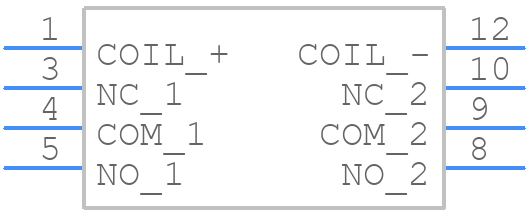

V23079D2001B301 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
V23079D2001B301 - TE Connectivity PCB footprint - Other - Other - V23079D2001B301-2
click to zoom
3D Models
V23079D2001B301 - TE Connectivity - 3D model - Other - V23079D2001B301-2
click to zoom

V23079D2001B301 Details

  • Manufacturer Part Number:

    V23079D2001B301

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    54 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5

  • Dielectric Strength Between Coil and Contacts:

    1500 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • JESD-609 Code:

    e4

  • Relay Type:

    POWER/SIGNAL RELAY

  • Terminal Finish:

    Gold (Au)

  • Weight:

    2.8 g

V23079D2001B301 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, the V23079D2001B301 relay is designed to withstand vibrations up to 10 g, making it suitable for use in high-vibration environments.
  • The minimum operating temperature for the V23079D2001B301 relay is -40°C, as specified in the datasheet.
  • Yes, the V23079D2001B301 relay is designed to operate in humid environments, with a maximum relative humidity of 95% at 40°C.
  • The maximum switching frequency for the V23079D2001B301 relay is 30 operations per minute, as specified in the datasheet.
