V23079D2003B301 - TE Connectivity

Description: Body Features: Product Weight .0988 OZ | Product Weight 2.8 G | Insulation Special Features 2500V Initial Surge Withstand Voltage between Contacts & Coil | Contact Features: Contact Current Class 0 – 2 AMP | Contact Plating Material Gold | Contact Special Features Bifurcated/Twin Contacts | Contact Number of Poles 2 | Contact Arrangement 2 Form C (CO) | Contact Base Material AgNi+Au | Contact Current Rating (Max) 2 AMP | Dimensions: Insulation Clearance Class 0 – 2.5 MM | Width Class (Mechanical) 6 –

Download V23079D2003B301 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

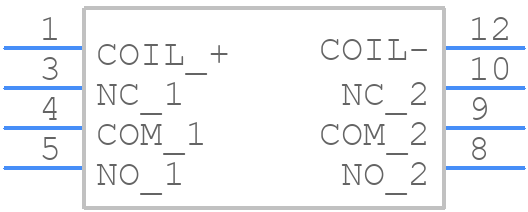

V23079D2003B301 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
V23079D2003B301 - TE Connectivity PCB footprint - Other - Other - V23079D
click to zoom

V23079D2003B301 Details

  • Manufacturer Part Number:

    V23079D2003B301

  • Brand Name:

    Axicom

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    54 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5

  • Dielectric Strength Between Coil and Contacts:

    1500 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • Relay Type:

    POWER/SIGNAL RELAY

  • Weight:

    2.8 g
