Part Image

V23079D2011B301 - TE Connectivity

Description: DPDT PCB Mount Non-Latching Relay Surface Mount, 2 A, 4.5V dc

Download V23079D2011B301 Model

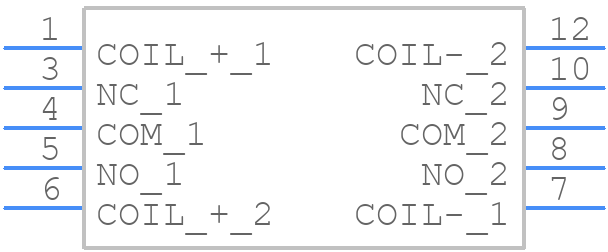

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
V23079D2011B301 - TE Connectivity PCB footprint - Other - Other - V23079D2011B301-1
click to zoom
3D Models
V23079D2011B301 - TE Connectivity  - 3D model - Other - V23079D2011B301-1
click to zoom

V23079D2011B301 Details

  • Manufacturer Part Number:

    V23079D2011B301

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    13 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.35

  • Additional Feature:

    RELEASE TIME WITH DIODE IN PARALLEL

  • Body Breadth:

    7.2 mm

  • Body Height:

    9.9 mm

  • Body Length or Diameter:

    14.6 mm

  • Coil Current(DC)-Max:

    0.031 A

  • Coil Operate Voltage(DC):

    3.375 V

  • Coil Power:

    300 mW

  • Coil Release Voltage(DC):

    0.45 V

  • Coil Resistance:

    145 Ω

  • Coil Voltage(DC)-Max:

    4.5 V

  • Coil Voltage-Nom:

    4.5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Power Rating R Load:

    62.5VA@250VAC

  • Contact (AC) Max Rating R Load:

    2A@250VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Power Rating R Load:

    60W@220VDC

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Resistance:

    50 mΩ

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    1500 Vrms

  • Dielectric Strength Between Open Contacts:

    1000 Vrms

  • Electrical Life:

    200000 Cycle(s)

  • End Contact Material:

    SILVER NICKEL

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Insertion Loss-Max:

    -0.27 dB

  • Insulation Resistance:

    1000000000000 Ω

  • Isolation-Max:

    -20.7 dB

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Number of Terminals:

    10

  • Operate Time:

    8 ms

  • Operating Frequency-Max:

    900 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Physical Dimension:

    15mm x 7.5mm x 9.9mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    9 ms

  • Sealing:

    IP67

  • Surface Mount:

    NO

  • Switching Time:

    17 ms

  • Termination Type:

    SOLDER/QUICK CONNECT

  • VSWR:

    1.4

  • Weight:

    2.8 g

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V23079D2011B301 Overview

Use the download button to access the V23079D2011B301 schematic symbol, PCB footprint, and 3D model.
