V23100V4305C010 - TE Connectivity

Description: Body Features: Product Weight 1.8 G | Product Weight .0635 OZ | Contact Features: Contact Current Rating (Max) .5 AMP | Contact Number of Poles 1 | Contact Base Material Ruthenium | Contact Current Class 0 – 2 AMP | Contact Plating Material Ruthenium | Contact Special Features Reed Contacts | Contact Arrangement 1 Form C (CO) | Dimensions: Width Class (Mechanical) 6 – 8 MM | Product Length 19.3 MM | Product Height 7.5 MM | Product Height .295 INCH | Length Class (Mechanical) 16 – 20 MM | Product Width

Download V23100V4305C010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

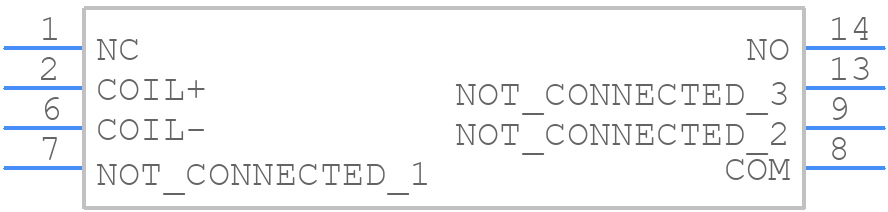

V23100V4305C010 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
V23100V4305C010 - TE Connectivity PCB footprint - Other - Other - V23100V4305C010-1
click to zoom
3D Models
V23100V4305C010 - TE Connectivity - 3D model - Other - V23100V4305C010-1
click to zoom

V23100V4305C010 Details

  • Manufacturer Part Number:

    V23100V4305C010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    7 mm

  • Body Height:

    7.5 mm

  • Body Length or Diameter:

    19.3 mm

  • Coil Current(DC)-Max:

    0.025 A

  • Coil Power:

    70 mW

  • Coil Resistance:

    200 Ω

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    1.2 A

  • Contact Current(DC)-Max:

    1.2 A

  • Contact Voltage(DC)-Max:

    24 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    1500 Vrms

  • Dielectric Strength Between Open Contacts:

    200 Vrms

  • End Contact Material:

    RUTHENIUM

  • Insulation Resistance:

    1000000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    19.3mm x 7.6mm x 7.5mm

  • Reference Standard:

    UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    DRY REED RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    1.8 g
