V23100V4312C010 - TE Connectivity

Description: Body Features: Product Weight 1.8 G | Product Weight .0635 OZ | Contact Features: Contact Base Material Nickel-Palladium | Contact Current Class 0 – 2 AMP | Contact Arrangement 1 Form C (CO) | Contact Special Features Reed Contacts | Contact Plating Material Ruthenium | Contact Current Rating (Max) 1 AMP | Contact Number of Poles 1 | Dimensions: Product Height 7.5 MM | Product Height .295 INCH | Product Length .759 INCH | Product Length 19.3 MM | Product Width 7 MM | Height Class (Mechanical) 7 – 8 MM |

Download V23100V4312C010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

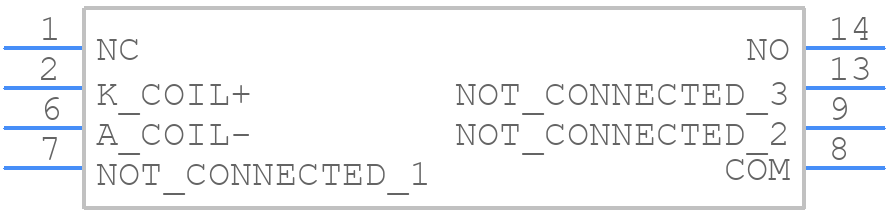

V23100V4312C010 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
V23100V4312C010 - TE Connectivity PCB footprint - Other - Other - V23100V4312C010-3
click to zoom
3D Models
V23100V4312C010 - TE Connectivity - 3D model - Other - V23100V4312C010-3
click to zoom

V23100V4312C010 Details

  • Manufacturer Part Number:

    V23100V4312C010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    7 mm

  • Body Height:

    7.5 mm

  • Body Length or Diameter:

    19.3 mm

  • Coil Current(DC)-Max:

    0.024 A

  • Coil Power:

    144 mW

  • Coil Resistance:

    500 Ω

  • Coil Voltage(AC)-Max:

    28 V

  • Coil Voltage(DC)-Max:

    28 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    1.2 A

  • Contact Current(DC)-Max:

    1.2 A

  • Contact Voltage(DC)-Max:

    24 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    1500 Vrms

  • Dielectric Strength Between Open Contacts:

    200 Vrms

  • End Contact Material:

    NICKEL PALLADIUM

  • Insulation Resistance:

    1000000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    19.3mm x 7.6mm x 7.5mm

  • Reference Standard:

    UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    DRY REED RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

  • Weight:

    1.8 g

V23100V4312C010 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the terminals.
  • Yes, the V23100V4312C010 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) in the frequency range of 2 Hz to 2000 Hz.
  • Yes, the V23100V4312C010 is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to ensure the connector remains watertight.
  • The maximum operating temperature range for the V23100V4312C010 is -40°C to 125°C. It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the V23100V4312C010 is compatible with aluminum wires. However, it's essential to follow proper wire preparation and termination procedures to ensure reliable connections and prevent wire damage.
