Part Image

V23105A5005A201 - TE Connectivity

Description: DPCO submin relay,3A 24Vdc coil 150mW

Download V23105A5005A201 Model

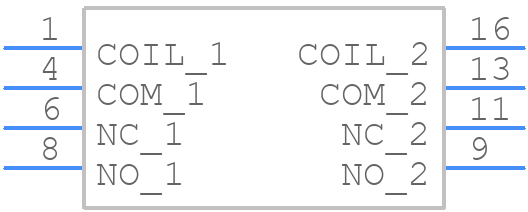

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

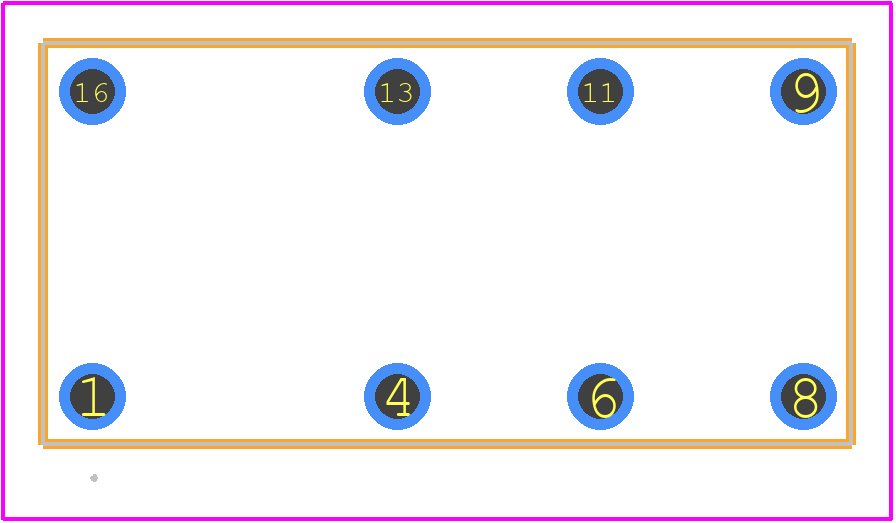

V23105A5005A201 - TE Connectivity PCB footprint - Other - Other - V23105A5005A201_2019
click to zoom
3D Models
V23105A5005A201 - TE Connectivity  - 3D model - Other - V23105A5005A201_2019
click to zoom

V23105A5005A201 Details

  • Manufacturer Part Number:

    V23105A5005A201

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    compliant

  • Manufacturer:

    TE Connectivity

  • Risk Rank:

    7.55

  • YTEOL:

    0

  • Body Breadth:

    10 mm

  • Body Height:

    11 mm

  • Body Length or Diameter:

    20.2 mm

  • Coil Current(DC)-Max:

    0.006 A

  • Coil Operate Voltage(DC):

    19.2 V

  • Coil Power:

    150 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    3840 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil Voltage-Nom:

    24 V

  • Coil/Input Supply Type:

    AC/DC

  • Contact (AC) Max Rating R Load:

    3A@250VAC

  • Contact Current(AC)-Max:

    3 A

  • Contact Current(DC)-Max:

    3 A

  • Contact (DC) Max Rating R Load:

    3A@220VDC

  • Contact Resistance:

    100 mΩ

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    100000 Cycle(s)

  • End Contact Material:

    Silver Nickel

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Number of Terminals:

    8

  • Operate Time:

    6 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    20.3mm x 10.1mm x 11.4mm

  • Reference Standard:

    CSA; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    4 ms

  • Surface Mount:

    NO

  • Terminal Length:

    0.003200406400812802 inch

  • Termination Type:

    SOLDER/QUICK CONNECT

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V23105A5005A201 Overview

Use the download button to access the V23105A5005A201 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V2310, or try a keyword search, such as RF Relays
