Vicor recommends a 4-layer PCB with a solid ground plane, and a thermal pad connected to a heat sink or a thermal interface material. A well-designed thermal management system is crucial to ensure the module operates within its specified temperature range.
Use a suitable input filter or a voltage regulator to regulate the input voltage. Additionally, ensure the input voltage is well-regulated and free from noise and transients that could affect the module's performance.
The maximum output capacitance is not explicitly stated in the datasheet, but as a general rule, Vicor recommends keeping the output capacitance below 1000uF to avoid stability issues. However, it's essential to consult with Vicor's application engineers for specific guidance on output capacitance selection.
While the V24A12T400BG is a high-quality module, it may not meet the specific requirements of high-reliability or military applications. Vicor offers other modules that are specifically designed and qualified for these applications, such as the V24A12T400BG-HI or the V24A12T400BG-MIL. Consult with Vicor's application engineers to determine the best module for your specific requirements.
Consult Vicor's application notes and troubleshooting guides, which provide detailed procedures for identifying and resolving common issues. Additionally, Vicor's technical support team is available to assist with troubleshooting and provide guidance on module operation and application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V24A12T400BG Overview

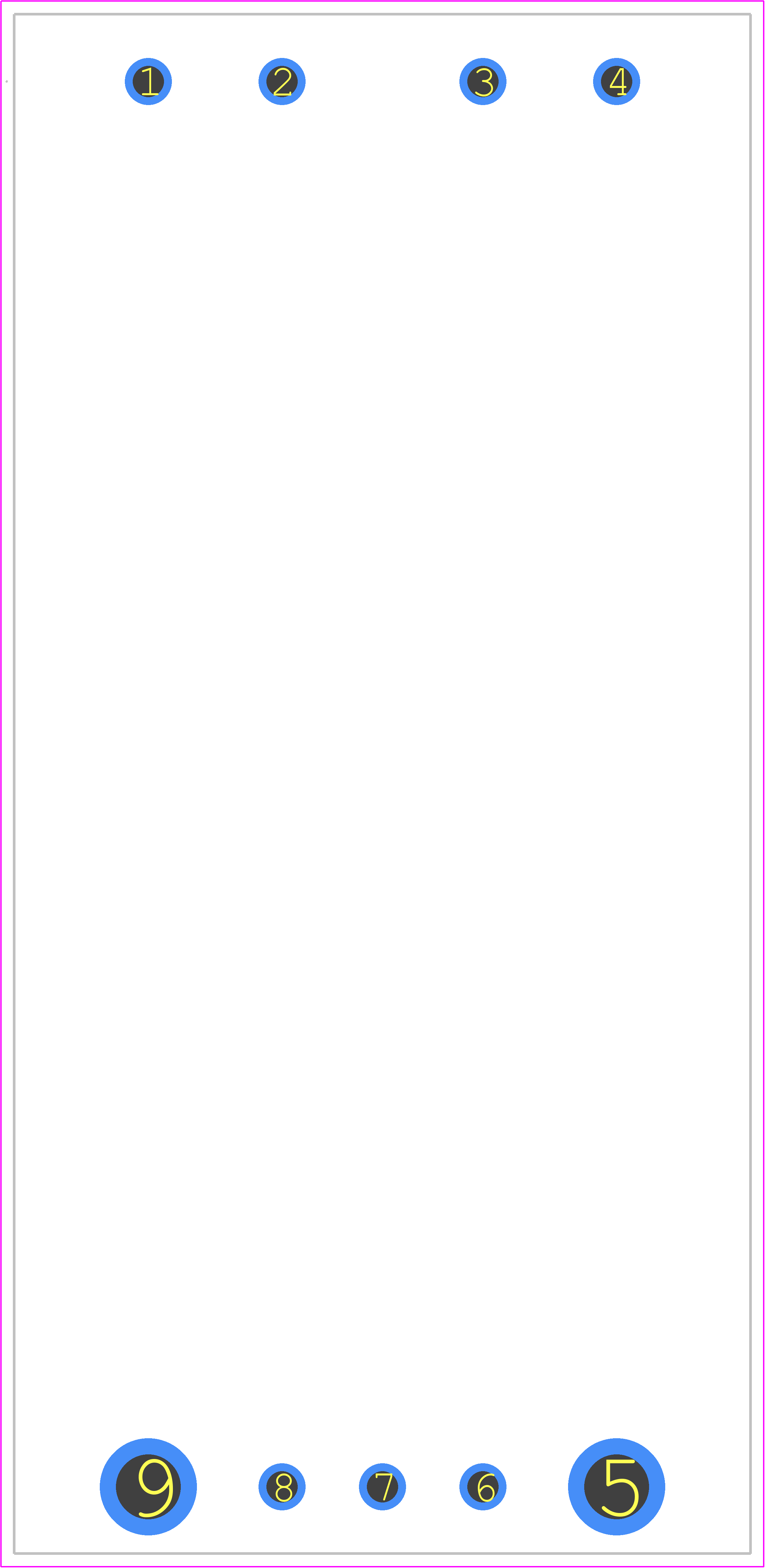

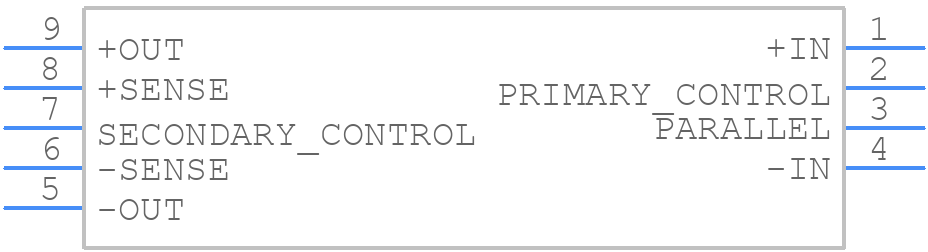

Use the download button to access the V24A12T400BG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V24A1,
or try a keyword search, such as Power Supply Modules
