Technical Content
Part Image

V24A24T500BL - VICOR

Description: Isolated DC/DC Converters Watts- 500 Vin 24 Vout 24 Grade - T

Download V24A24T500BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

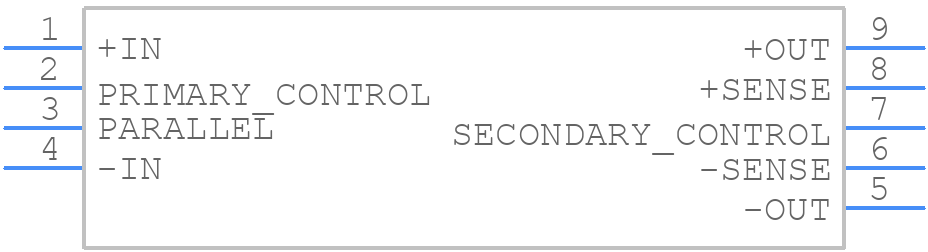

V24A24T500BL - VICOR - PCB symbol
click to zoom
PCB Footprints

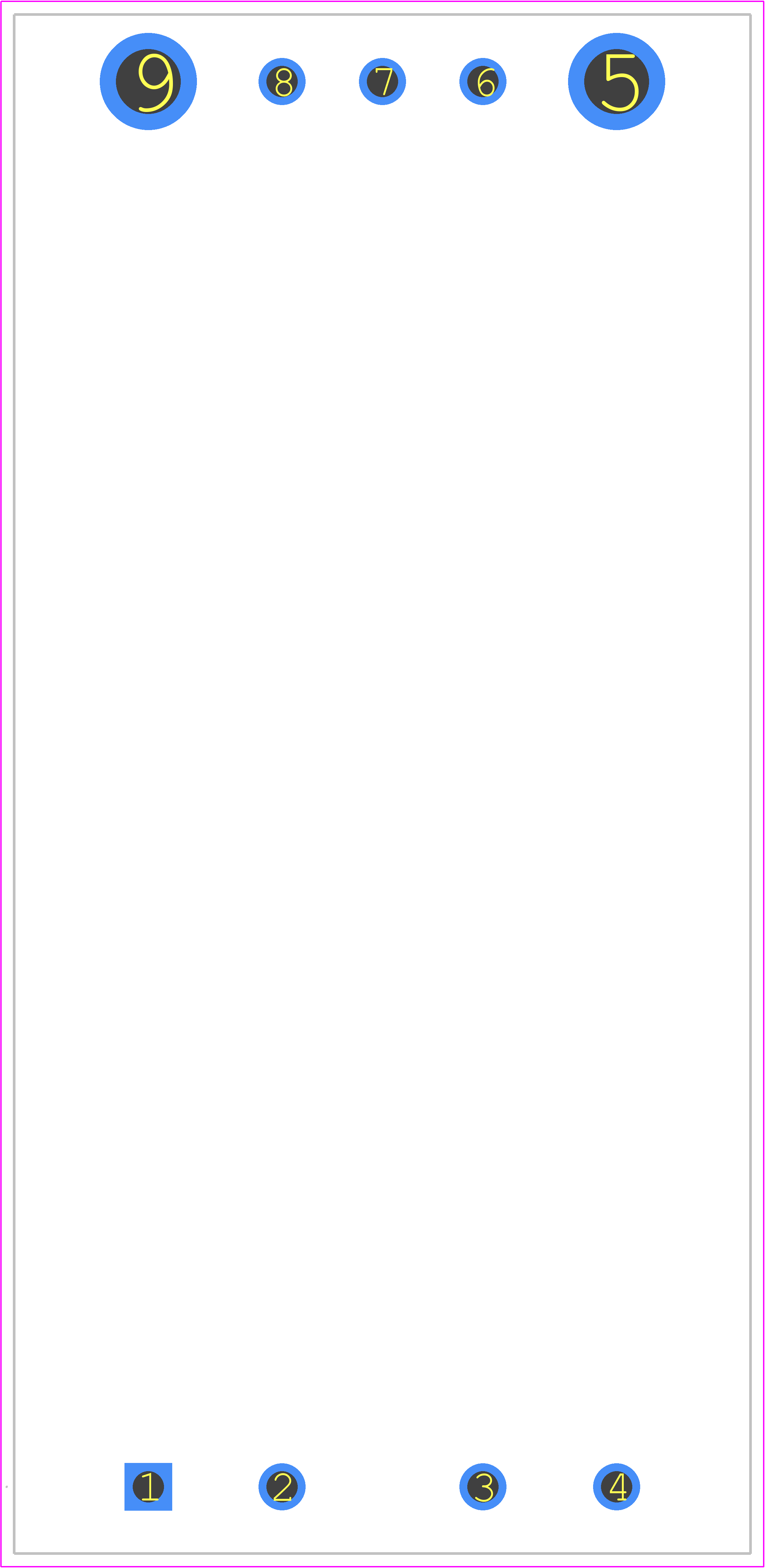

V24A24T500BL - VICOR PCB footprint - Other - Other - V24A24T500BL-1
click to zoom
3D Models
V24A24T500BL - VICOR - 3D model - Other - V24A24T500BL-1
click to zoom

V24A24T500BL Details

  • Manufacturer Part Number:

    V24A24T500BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P9

  • JESD-609 Code:

    e0

  • Length:

    116.84 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    2.4 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    500 W

  • Trim/Adjustable Output:

    YES

  • Width:

    55.88 mm

V24A24T500BL Frequently Asked Questions (FAQs)

  • Vicor recommends a PCB layout with a thermal pad connected to a heat sink or a thermal interface material to ensure optimal thermal performance. A minimum of 2-3 thermal vias under the module are also recommended.
  • Yes, the V24A24T500BL is designed to withstand high-vibration environments. However, it's recommended to follow Vicor's guidelines for mounting and securing the module to ensure reliable operation.
  • Vicor recommends a minimum of 10uF input capacitance and 10uF output capacitance to ensure stable operation and minimize ripple voltage.
  • Yes, the V24A24T500BL is designed to operate up to 50,000 feet, but derating may be required above 10,000 feet. Consult Vicor's application notes for high-altitude operation.
  • Vicor recommends a thermal interface material with a thermal conductivity of at least 1.5 W/m-K, such as a thermal pad or thermal grease, to ensure optimal thermal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V24A24T500BL Overview

Use the download button to access the V24A24T500BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V24A2, or try a keyword search, such as Power Supply Modules
