V24B28C150BL - VICOR

Description: Isolated Module DC DC Converter 1 Output 28V 5.36A 18V - 36V Input, 3kV , 150W , -20°C ~ 100°C

Download V24B28C150BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

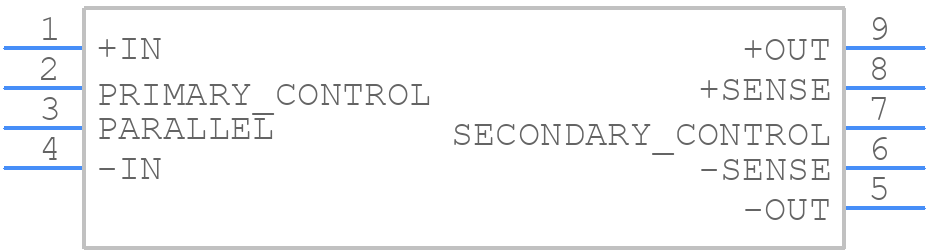

Symbol
V24B28C150BL - VICOR - PCB symbol
click to zoom

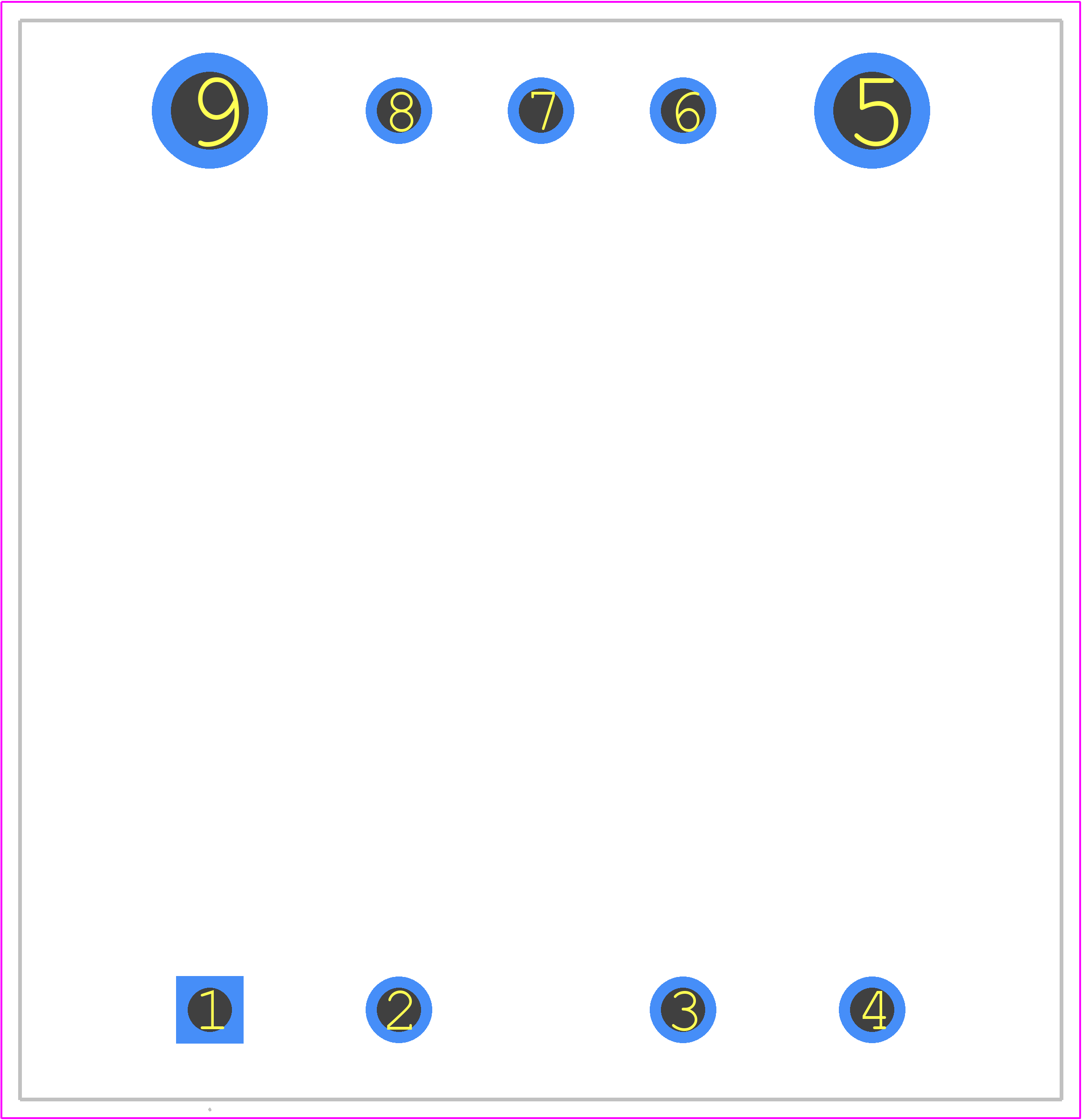

PCB Footprints
V24B28C150BL - VICOR PCB footprint - Other - Other - V24B28C150BL-2
click to zoom
3D Models
V24B28C150BL - VICOR - 3D model - Other - V24B28C150BL-2
click to zoom

V24B28C150BL Details

  • Manufacturer Part Number:

    V24B28C150BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-9

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.78

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P9

  • JESD-609 Code:

    e0

  • Length:

    55.88 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    30.8 V

  • Output Voltage-Min:

    2.8 V

  • Output Voltage-Nom:

    28 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.91 mm

V24B28C150BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and a thermal pad connected to a heat sink or a thermal interface material. Proper thermal management is crucial to ensure the module's reliability and performance.
  • Use a suitable input filter or a voltage regulator to regulate the input voltage. Additionally, ensure the input voltage is within the recommended range (18-36V) to prevent damage to the module.
  • The output current derating for high ambient temperatures is typically 1.5% per degree Celsius above 30°C. Consult Vicor's application notes or contact their support team for specific derating curves.
  • Yes, the V24B28C150BL can be used in redundant or parallel configurations. However, it's essential to follow Vicor's guidelines for paralleling and redundancy to ensure proper operation and reliability.
  • The V24B28C150BL is designed to meet CISPR 22 Class B and FCC Part 15 Class B emissions standards. Ensure proper PCB layout, grounding, and shielding to minimize EMI and RFI effects.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V24B28C150BL Overview

Use the download button to access the V24B28C150BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V24B2, or try a keyword search, such as Power Supply Modules
