V24B48C200BG footprint, schematic symbol and 3D model by VICOR

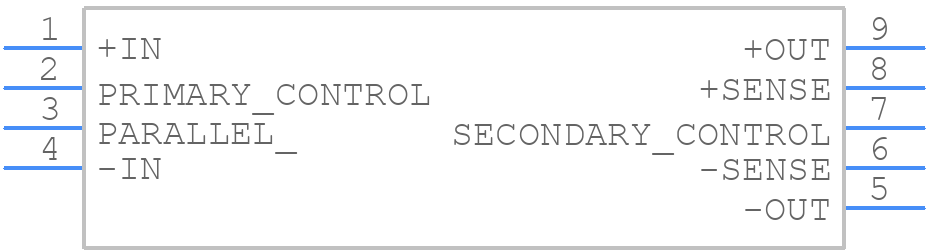

Symbol

click to zoom

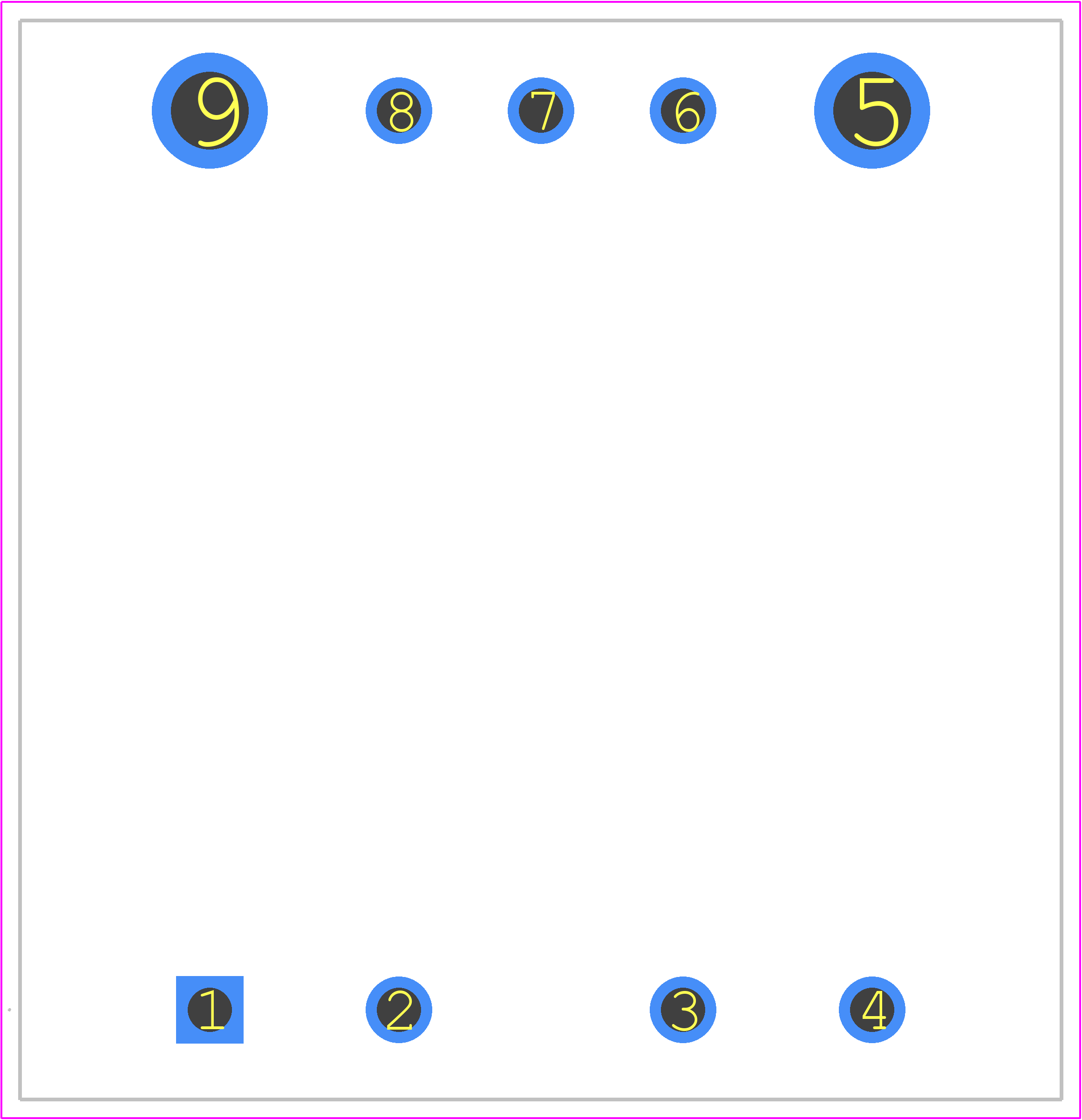

PCB Footprints

V24B48C200BG - VICOR PCB footprint - Other - Other - V24B48C200BG-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for V24B48C200BG
Part Number V24B48C200BG
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - V24B48C200BG-2
Released Date Jul 10, 2026
Last Modified Date Jul 10, 2026 10:09 AM UTC
Pinout / Pin List Click Here (Member Only)

V24B48C200BG Details

Manufacturer Part Number:
V24B48C200BG
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Package Description:
PACKAGE-9
Pin Count:
9
ECCN Code:
EAR99
Factory Lead Time:
22 Weeks
Manufacturer:
Vicor Power
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Control Mode:
VOLTAGE-MODE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDFM-P9
JESD-609 Code:
e4
Length:
55.88 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-20 °C
Output Voltage-Max:
52.8 V
Output Voltage-Min:
4.8 V
Output Voltage-Nom:
48 V
Package Body Material:
UNSPECIFIED
Package Code:
DFM
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
200 W
Trim/Adjustable Output:
YES
Width:
57.91 mm

V24B48C200BG Frequently Asked Questions (FAQs)

Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink. Vicor provides a reference design and layout guidelines in their application notes.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the output voltage. Additionally, a slow-turn-on and slow-turn-off of the input voltage can help prevent damage to the converter.
The maximum allowable capacitance on the output of the V24B48C200BG is 2200uF. Exceeding this value can cause instability and affect the converter's performance. Vicor recommends using a capacitance value that is less than or equal to 2200uF to ensure stable operation.
Yes, the V24B48C200BG can be used in a parallel configuration to increase power output. However, Vicor recommends using a master-slave configuration with a single output voltage sense point to ensure stable operation and prevent oscillations.
Vicor recommends using a fuse with a rating of 10A or less to protect the converter from input overcurrent conditions. The fuse should be located as close to the input terminals as possible to minimize the risk of damage to the converter.

Trust Checks

Community Provided

System Verified

Community Approved

V24B48C200BG Overview

Use the download button to access the V24B48C200BG schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like V24B4, or try a keyword search, such as Power Supply Modules
