V24C12C150BL2 - VICOR

Description: Isolated DC/DC Converters - Through Hole Watts- 150 Vin 24 Vout 12 Grade - C

Download V24C12C150BL2 Model

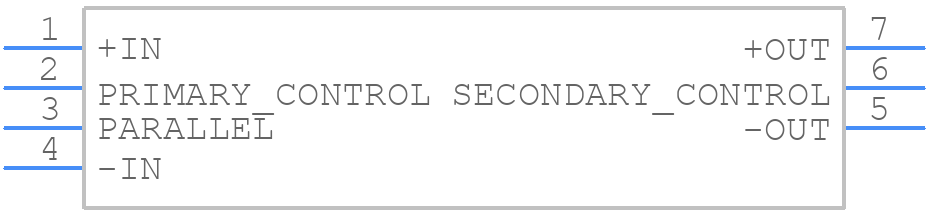

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

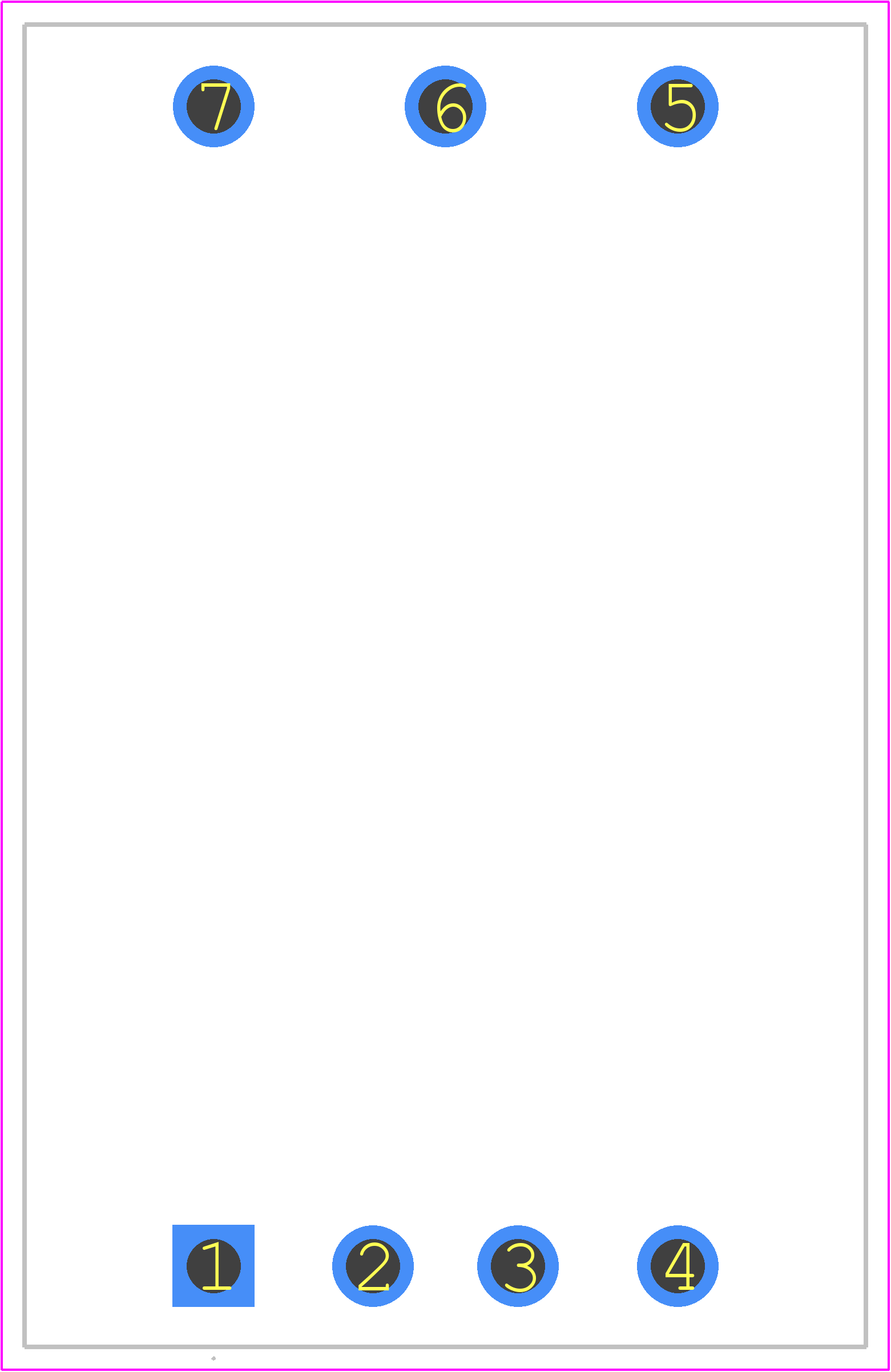

V24C12C150BL2 - VICOR PCB footprint - Other - Other - 36.83 x 57.91 x 12.7mm
click to zoom
3D Models
V24C12C150BL2 - VICOR  - 3D model - Other - 36.83 x 57.91 x 12.7mm
click to zoom

V24C12C150BL2 Details

  • Manufacturer Part Number:

    V24C12C150BL2

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.78

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V24C12C150BL2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the V24C12C150BL2 is -40°C to +100°C, with a derating of 1.5% per °C above 80°C.
  • Yes, the V24C12C150BL2 is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-STD-810F, Method 514.5, Category 10.
  • The recommended input capacitance for the V24C12C150BL2 is 100nF to 1μF, with a voltage rating of at least 50V.
  • Yes, you can parallel multiple V24C12C150BL2 modules to increase output current. However, it's essential to ensure that the modules are identical and that the output voltage is matched within 1% to prevent current imbalance.
  • The typical efficiency of the V24C12C150BL2 is around 92% at full load, with an input voltage of 24V and an output voltage of 12V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V24C12C150BL2 Overview

Use the download button to access the V24C12C150BL2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V24C1, or try a keyword search, such as Power Supply Modules
