V24C15C150BL - VICOR

Description: Isolated DC/DC Converters - Through Hole C 18/36/24 15v/ 10A

Download V24C15C150BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

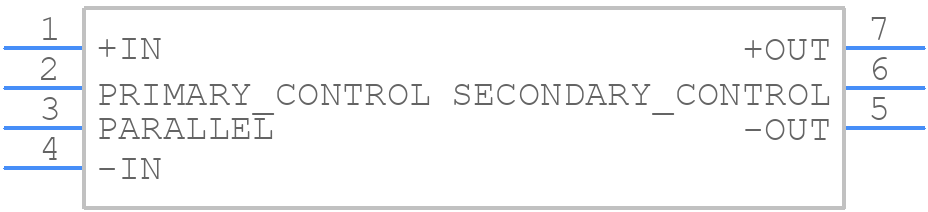

V24C15C150BL - VICOR - PCB symbol
click to zoom
PCB Footprints

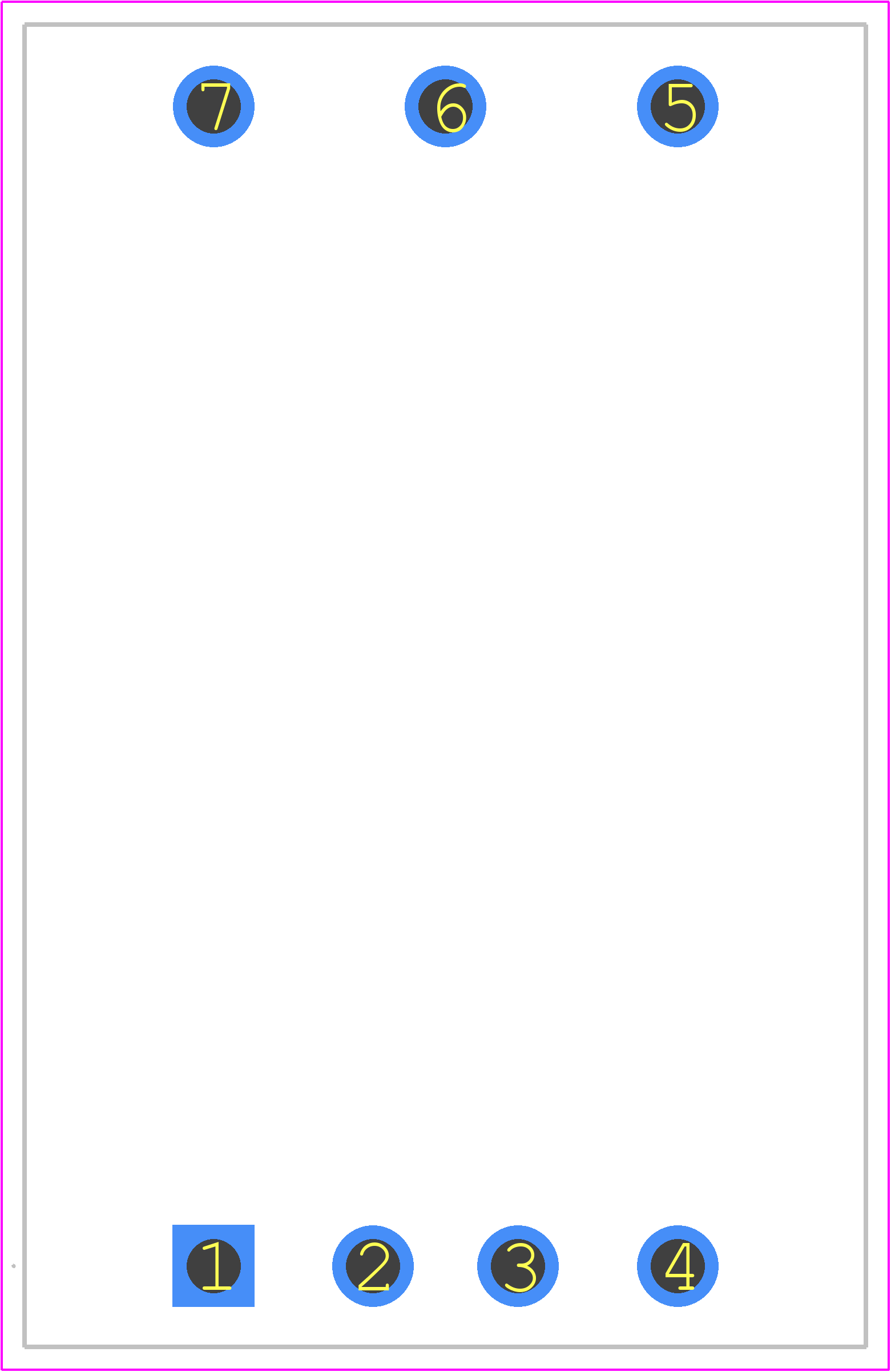

V24C15C150BL - VICOR PCB footprint - Other - Other - V24C15C150BL-1
click to zoom
3D Models
V24C15C150BL - VICOR - 3D model - Other - V24C15C150BL-1
click to zoom

V24C15C150BL Details

  • Manufacturer Part Number:

    V24C15C150BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.78

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    16.5 V

  • Output Voltage-Min:

    1.5 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V24C15C150BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a thermal interface material. A good thermal management is crucial to ensure the module's reliability and performance.
  • The V24C15C150BL requires a specific input and output voltage sequencing to prevent damage. Ensure that the input voltage is applied before the output voltage, and the output voltage is removed before the input voltage. A soft-start circuit can be used to meet these requirements.
  • The maximum allowable capacitance on the output of the V24C15C150BL is 2200uF. Exceeding this value may cause instability or oscillations in the module.
  • The V24C15C150BL has a temperature monitoring pin (VTM) that can be used to monitor the module's temperature. Additionally, the module has a fault pin (FLT) that indicates overvoltage, undervoltage, overtemperature, and output overcurrent conditions.
  • Vicor recommends using a pi-filter configuration with a common-mode choke and X-capacitors to minimize EMI and noise on the input of the module. The filter components should be selected based on the specific application and regulatory requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V24C15C150BL Overview

Use the download button to access the V24C15C150BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V24C1, or try a keyword search, such as Power Supply Modules
