V24C28T100BL - VICOR

Description: Isolated DC/DC Converters - Through Hole Watts- 100 Vin 24 Vout 28 Grade - T

Download V24C28T100BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

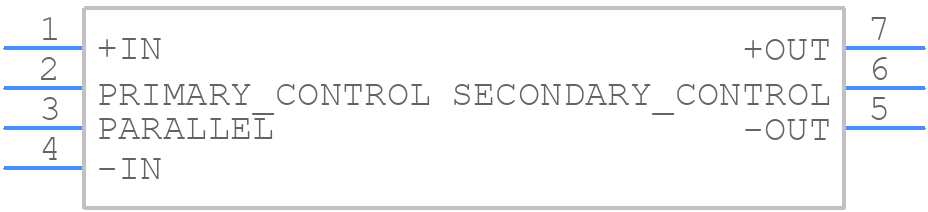

Symbol
V24C28T100BL - VICOR - PCB symbol
click to zoom

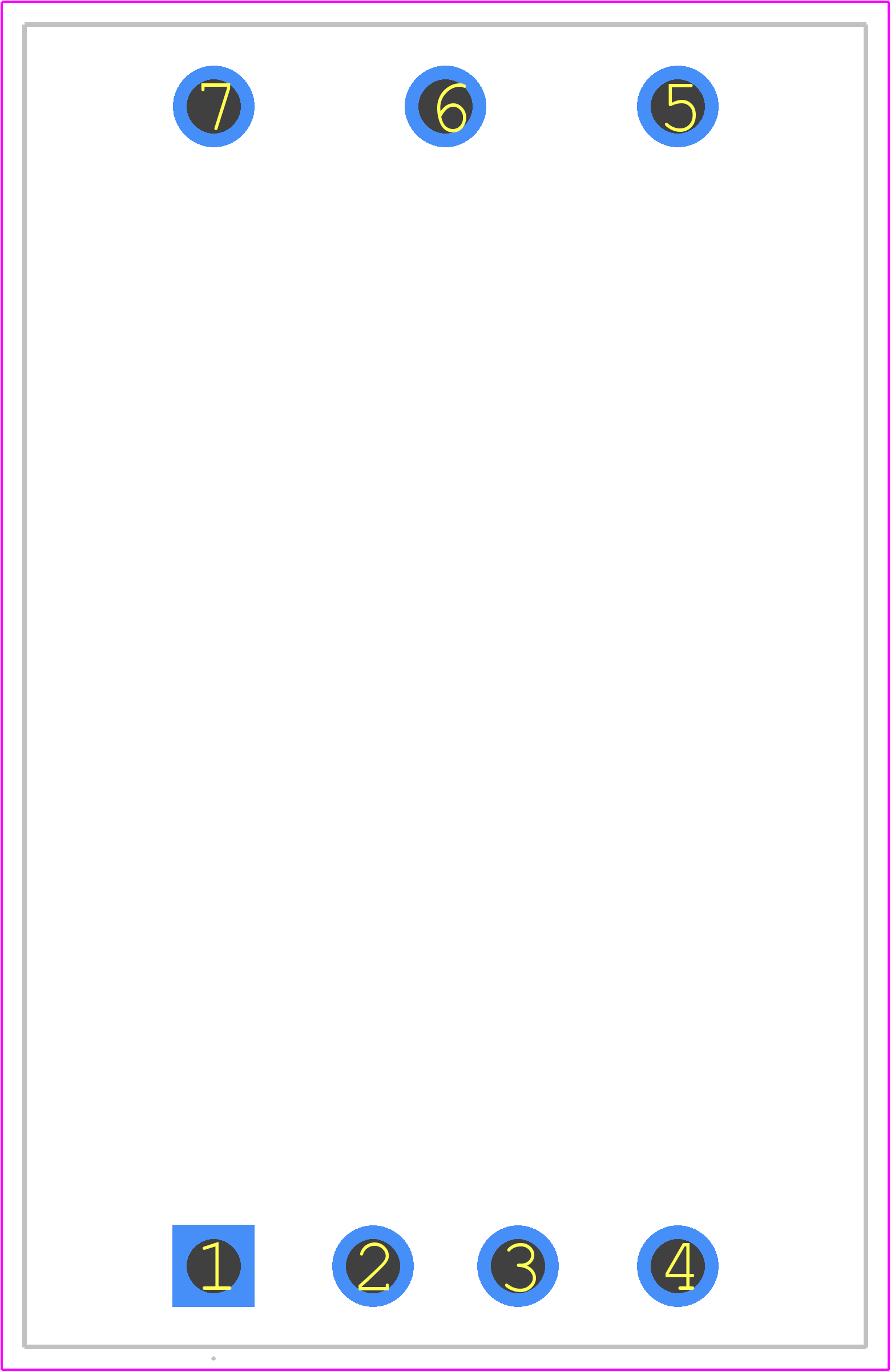

PCB Footprints
V24C28T100BL - VICOR PCB footprint - Other - Other - V24C28T100BL-2
click to zoom
3D Models
V24C28T100BL - VICOR - 3D model - Other - V24C28T100BL-2
click to zoom

V24C28T100BL Details

  • Manufacturer Part Number:

    V24C28T100BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.78

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    30.8 V

  • Output Voltage-Min:

    2.8 V

  • Output Voltage-Nom:

    28 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V24C28T100BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents and ensure a smooth start-up.
  • The maximum allowed capacitance on the output of the V24C28T100BL is 100uF. Exceeding this value may cause instability or oscillations.
  • While the V24C28T100BL is rated for operation up to 100°C, Vicor recommends derating the output power by 1% per degree above 80°C to ensure reliable operation.
  • Vicor recommends checking the input voltage, output voltage, and output current to identify the source of the issue. Additionally, checking the thermal performance and ensuring proper PCB layout can help troubleshoot issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V24C28T100BL Overview

Use the download button to access the V24C28T100BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V24C2, or try a keyword search, such as Power Supply Modules
