V24C36C50BL - VICOR

Description: Isolated DC/DC Converters C 18/36/24 36v/ 1.39A

Download V24C36C50BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

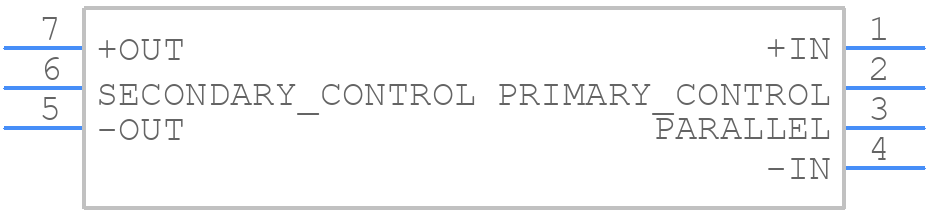

Symbol
V24C36C50BL - VICOR - PCB symbol
click to zoom

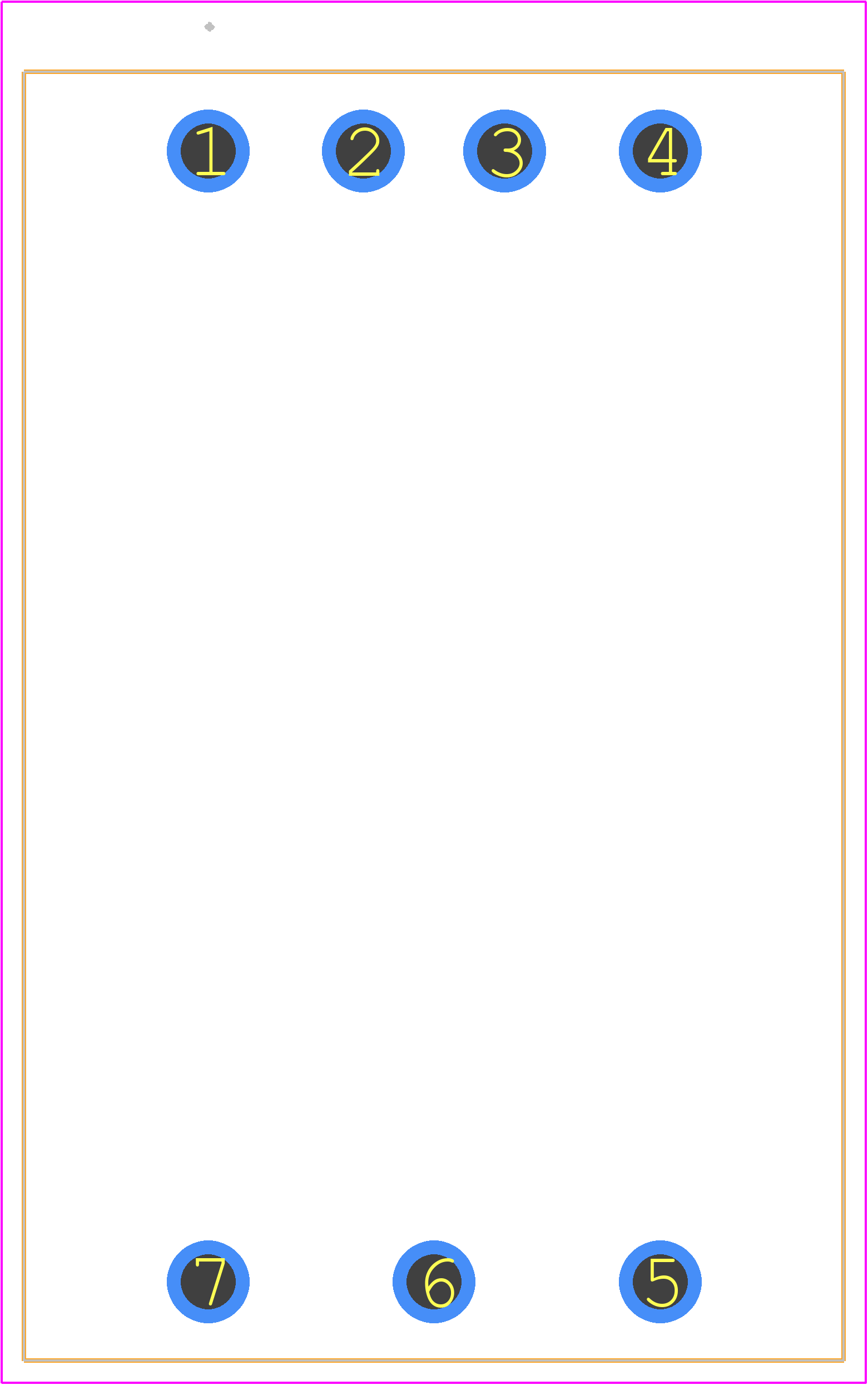

PCB Footprints
V24C36C50BL - VICOR PCB footprint - Other - Other - V24C36C50BL-1
click to zoom
3D Models
V24C36C50BL - VICOR - 3D model - Other - V24C36C50BL-1
click to zoom

V24C36C50BL Details

  • Manufacturer Part Number:

    V24C36C50BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.78

  • Additional Feature:

    REMOTE SHUTDOWN

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    UL, CSA, TUV

  • Efficiency (Main Output):

    85%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1.88 A

  • Output Voltage-Max:

    39.6 V

  • Output Voltage-Min:

    3.6 V

  • Output Voltage-Nom:

    36 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Ripple Voltage (Main Out):

    0.0121 Vrms

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    50 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V24C36C50BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and a thermal pad connected to a heat sink or a thermal interface material. Proper thermal management is crucial to ensure the module's reliability and performance.
  • Use a suitable input filter or a voltage regulator to regulate the input voltage. Additionally, ensure the input voltage is within the recommended range (36V to 60V) to prevent damage to the module.
  • The output current derating for high ambient temperatures is typically 1.5% per degree Celsius above 40°C. Consult Vicor's application notes or contact their support team for specific derating curves.
  • Yes, the V24C36C50BL can be used in redundant or parallel configurations. However, it's essential to follow Vicor's guidelines and application notes for proper implementation to ensure reliable operation and avoid potential issues.
  • The V24C36C50BL is designed to meet CISPR 22 Class B and FCC Part 15 Class B EMI standards. Ensure proper PCB layout, grounding, and shielding to minimize EMI and RFI emissions. Consult Vicor's application notes for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V24C36C50BL Overview

Use the download button to access the V24C36C50BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V24C3, or try a keyword search, such as Power Supply Modules
