V24C48C100BL2 - VICOR

Description: Isolated DC/DC Converters - Through Hole Watts- 100 Vin 24 Vout 48 Grade - C

Download V24C48C100BL2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

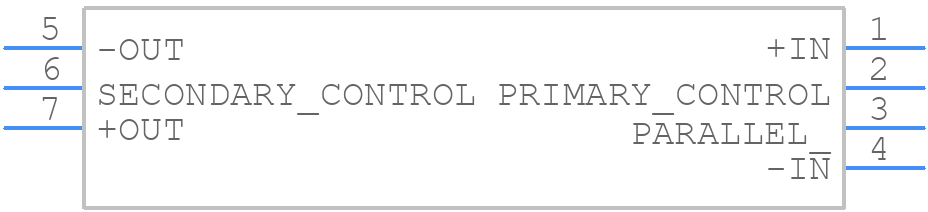

Symbol
V24C48C100BL2 - VICOR - PCB symbol
click to zoom

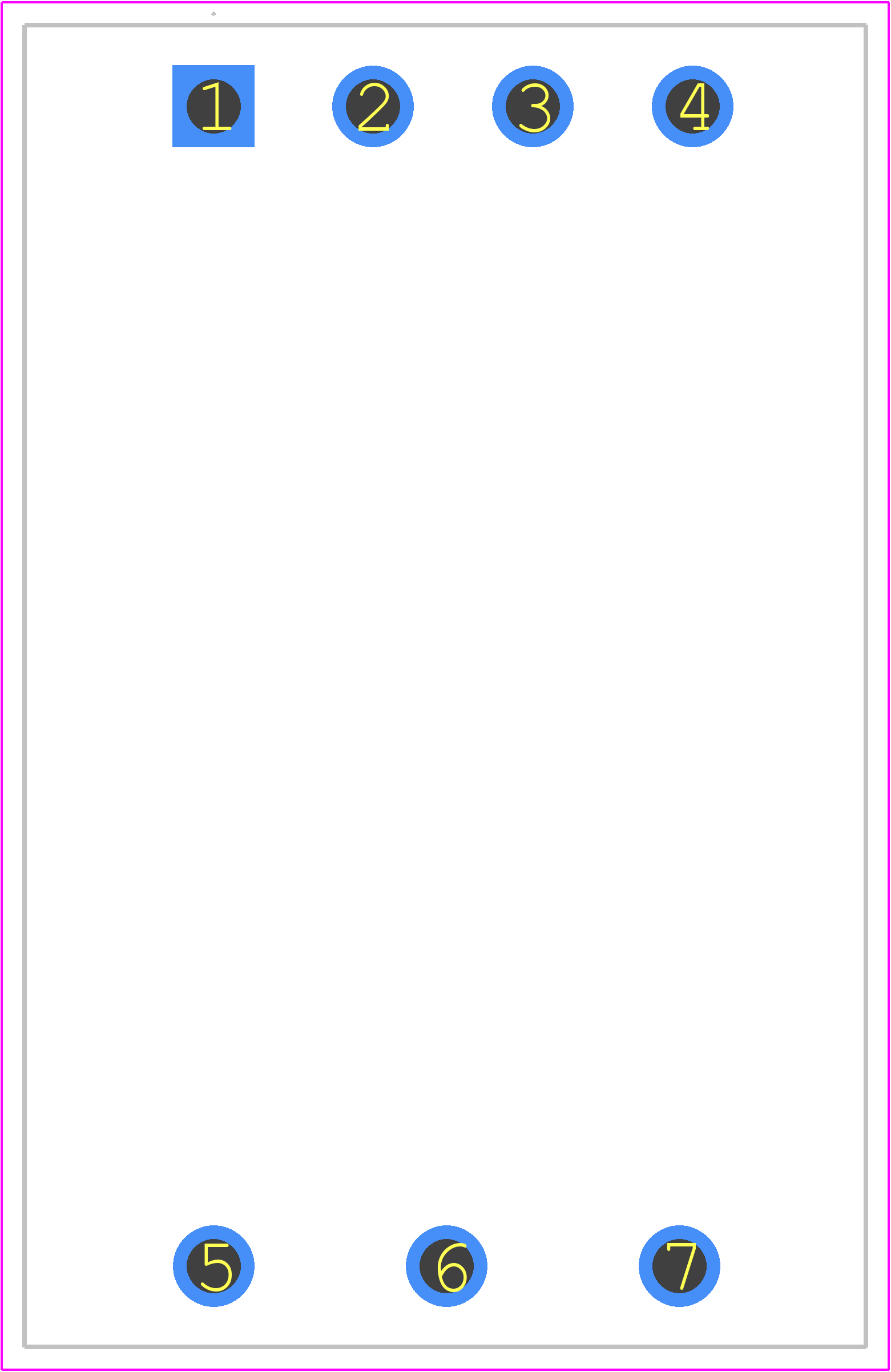

PCB Footprints
V24C48C100BL2 - VICOR PCB footprint - Other - Other - V24C48C100BL2-1
click to zoom
3D Models
V24C48C100BL2 - VICOR - 3D model - Other - V24C48C100BL2-1
click to zoom

V24C48C100BL2 Details

  • Manufacturer Part Number:

    V24C48C100BL2

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.78

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDFM-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    52.8 V

  • Output Voltage-Min:

    4.8 V

  • Output Voltage-Nom:

    48 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V24C48C100BL2 Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable start-up, Vicor recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents and ensure a smooth start-up.
  • The maximum capacitance on the output is limited by the converter's stability and should be derated based on the specific application. As a general guideline, Vicor recommends a maximum capacitance of 100uF.
  • The V24C48C100BL2 is rated for operation up to 100°C, but derating may be necessary for high-temperature applications. Consult Vicor's application notes for guidance on thermal derating.
  • To troubleshoot output voltage issues, check the input voltage, output load, and PCB layout. Ensure that the input voltage is within the specified range, the output load is within the recommended range, and the PCB layout is optimized for thermal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V24C48C100BL2 Overview

Use the download button to access the V24C48C100BL2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V24C4, or try a keyword search, such as Power Supply Modules
