V28A12C200BL - VICOR

Description: Isolated DC/DC Converters C 10/36/28 12v/ 16.7A

Download V28A12C200BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

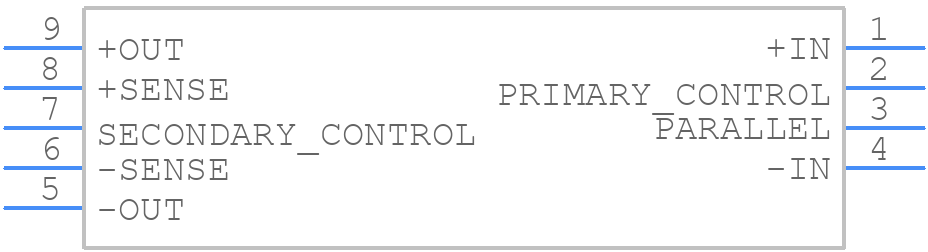

Symbol
V28A12C200BL - VICOR - PCB symbol
click to zoom

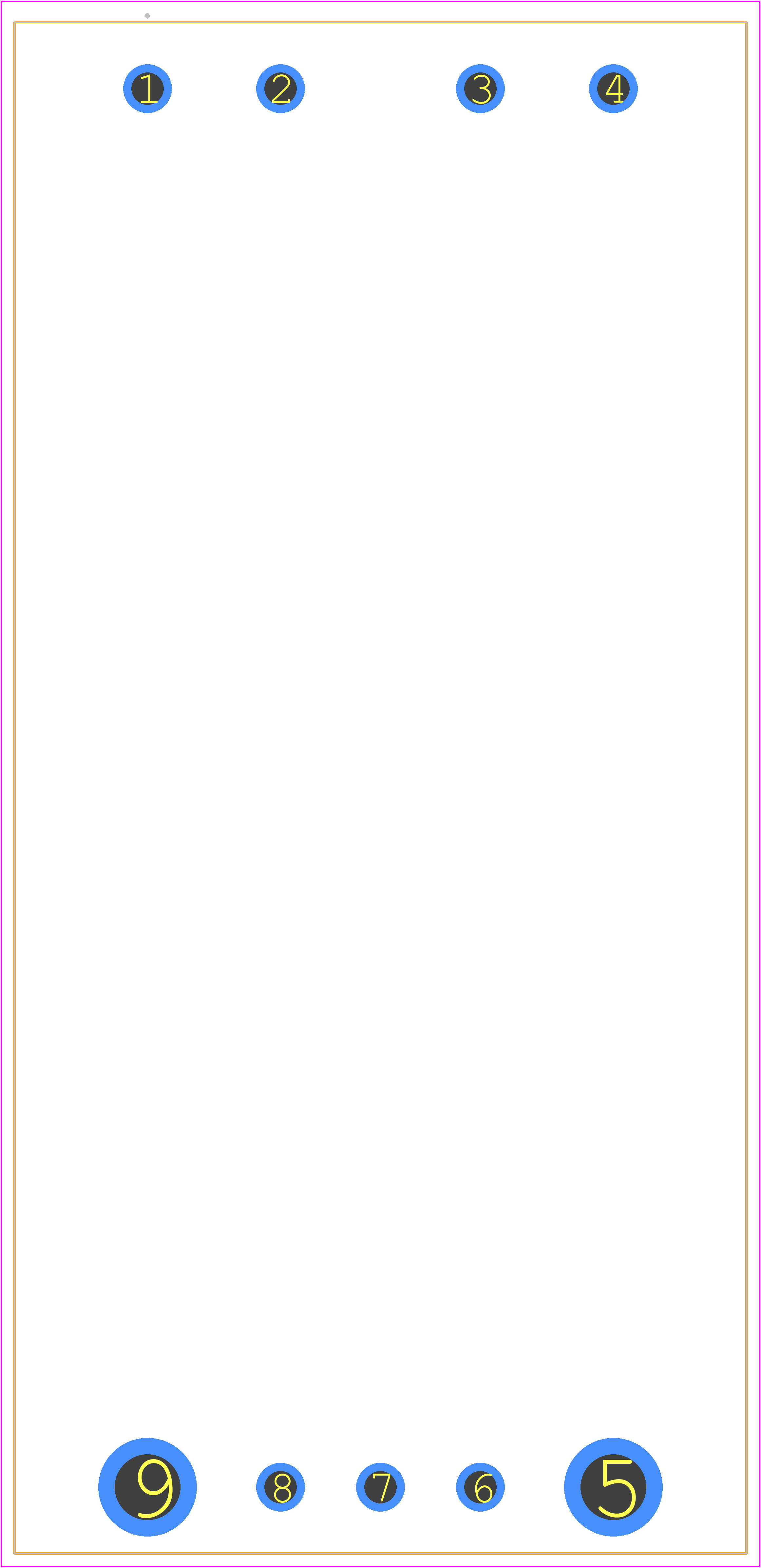

PCB Footprints
V28A12C200BL - VICOR PCB footprint - Other - Other - V48A24C500BG
click to zoom
3D Models
V28A12C200BL - VICOR - 3D model - Other - V48A24C500BG
click to zoom

V28A12C200BL Details

  • Manufacturer Part Number:

    V28A12C200BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    MODULE-9

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5.85

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDFM-P9

  • JESD-609 Code:

    e0

  • Length:

    116.84 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    200 W

  • Trim/Adjustable Output:

    YES

  • Width:

    55.88 mm

V28A12C200BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a thermal interface material (TIM) should be used between the module and the heat sink.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the output voltage. Additionally, a minimum input voltage of 18V is recommended for reliable start-up.
  • The maximum allowable capacitance on the output of the V28A12C200BL is 2200uF. Exceeding this value may cause instability or oscillation in the converter.
  • Yes, the V28A12C200BL can be used in a parallel configuration to increase output power. However, Vicor recommends using a master-slave configuration with a single output voltage sense point to ensure stable operation.
  • Vicor recommends a fuse rating of 5A to 10A, depending on the input voltage and current requirements of the application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V28A12C200BL Overview

Use the download button to access the V28A12C200BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V28A1, or try a keyword search, such as Power Supply Modules
