- Part Number V28C12H100BL
- Manufacturer VICOR
- Pin Count 7
- Part Category Power Supply
- Package Category Other
- Footprint Name Other - V28C12H100BL-3
- Released Date Jan 31, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
V28C12H100BL Details
-
Manufacturer Part Number:
V28C12H100BL
-
Pbfree Code:
No
-
Part Life Cycle Code:
Active
-
Part Package Code:
MODULE
-
Package Description:
PACKAGE-7
-
Pin Count:
7
-
ECCN Code:
EAR99
-
Factory Lead Time:
22 Weeks
-
Manufacturer:
Vicor Corporation
-
YTEOL:
6
-
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
V28C12H100BL Frequently Asked Questions (FAQs)
-
Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
-
To ensure reliable operation in high-vibration environments, Vicor recommends using a secure mounting method, such as screws or adhesive, and ensuring that the module is properly secured to the PCB.
-
Exceeding the maximum operating temperature can lead to reduced reliability, decreased efficiency, and potentially even module failure. It is essential to ensure that the module operates within the specified temperature range.
-
Yes, the V28C12H100BL can be used in a redundant configuration to ensure high availability and reliability in critical applications. However, it is essential to follow Vicor's guidelines for redundant configurations to ensure proper operation.
-
The V28C12H100BL has built-in EMI filtering, but additional external filtering may be required depending on the specific application and regulatory requirements. Vicor recommends following the guidelines in the datasheet and consulting with a qualified EMI expert if necessary.
Trust Checks
Expert Contribution
System Verified
Community Approved
V28C12H100BL Overview

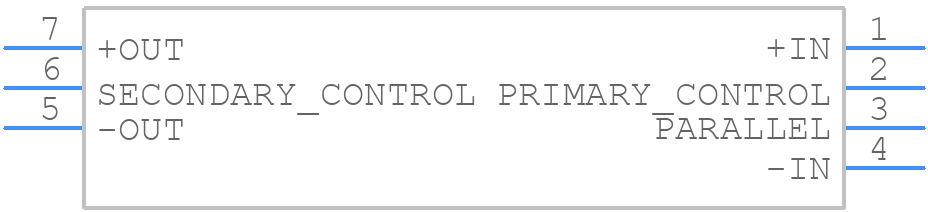

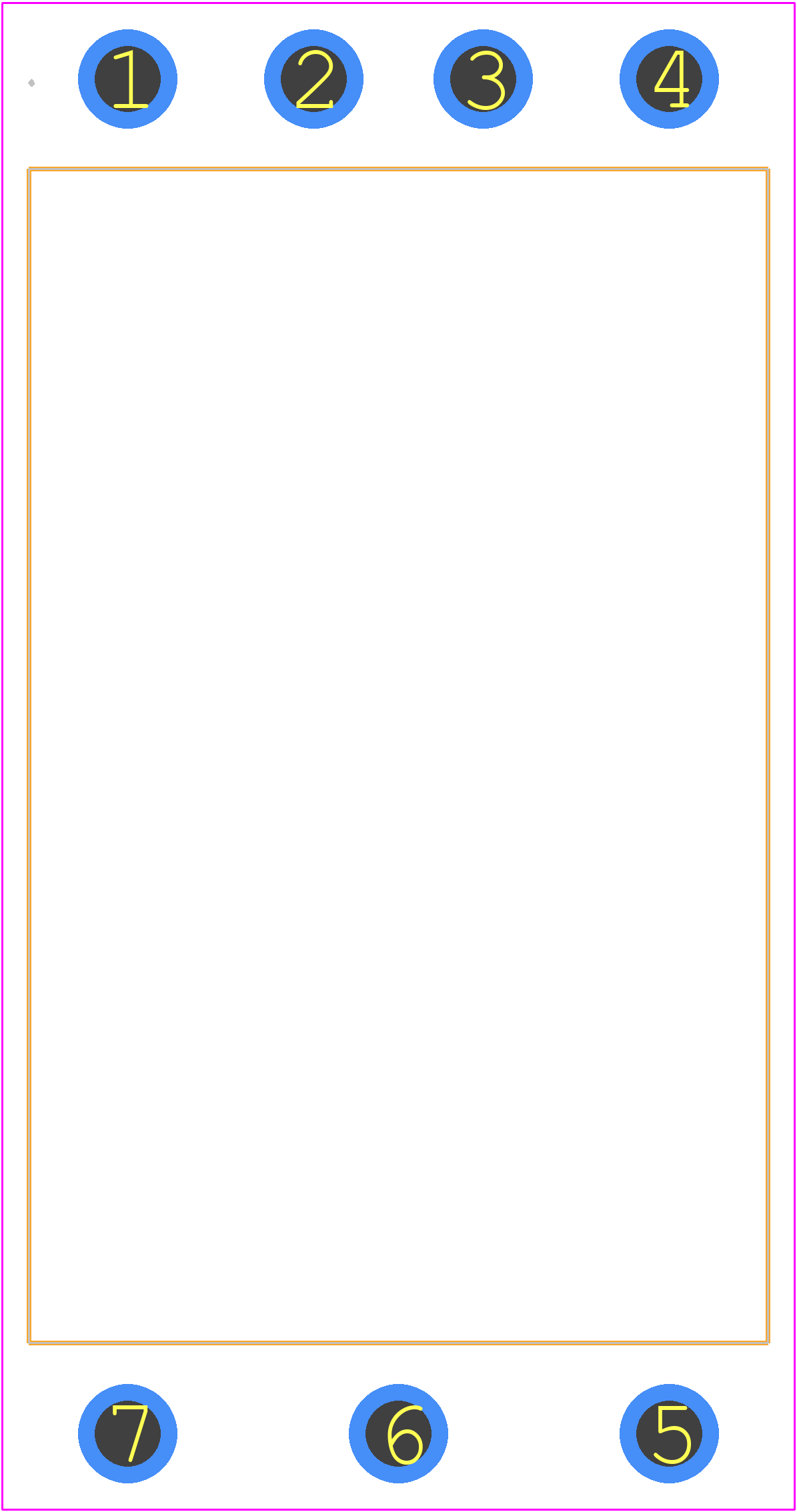

Use the download button to access the V28C12H100BL schematic symbol, PCB footprint, and 3D model.
