V28C12T100B2 - VICOR

Description: Isolated DC/DC Converters - Through Hole T 9/36/28 12v/ 8.33A

Download V28C12T100B2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

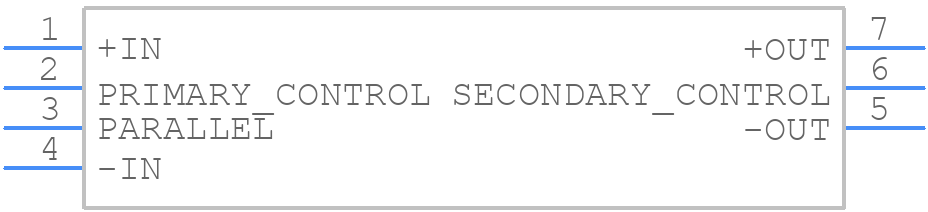

V28C12T100B2 - VICOR - PCB symbol
click to zoom
PCB Footprints

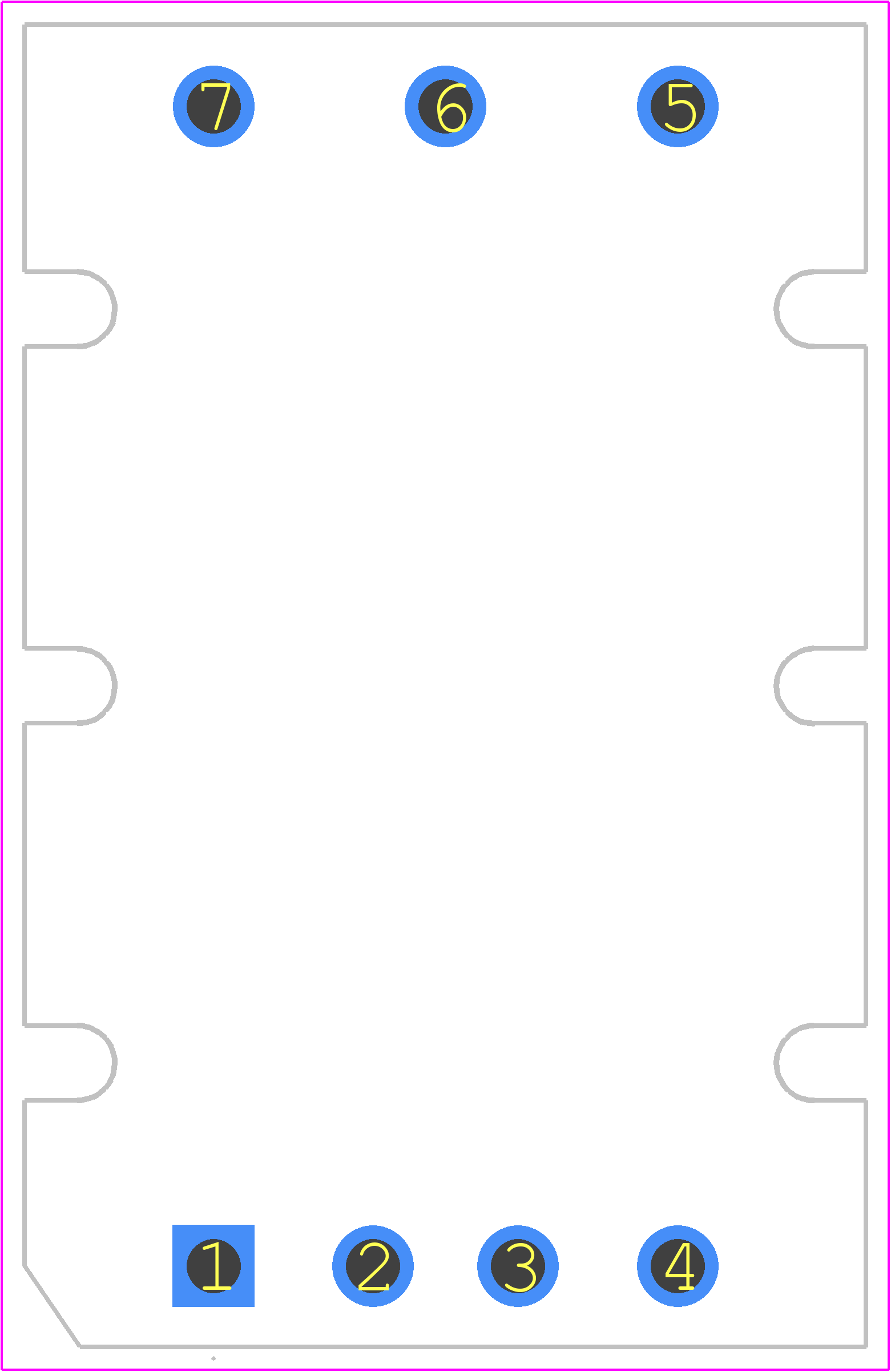

V28C12T100B2 - VICOR PCB footprint - Other - Other - 57.9 x 36.8 x 12.7 mm
click to zoom
3D Models
V28C12T100B2 - VICOR - 3D model - Other - 57.9 x 36.8 x 12.7 mm
click to zoom

V28C12T100B2 Details

  • Manufacturer Part Number:

    V28C12T100B2

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDMA-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V28C12T100B2 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the V28C12T100B2 is -40°C to +100°C, with a derated output power above 80°C.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring the module is mounted on a thermally conductive surface. Vicor recommends a minimum airflow of 200 LFM (linear feet per minute) for optimal performance.
  • The recommended input voltage range for the V28C12T100B2 is 18V to 36V, with a maximum input voltage of 40V for short-term transients.
  • Yes, the V28C12T100B2 is designed to meet the requirements of high-reliability and military applications. Vicor offers a range of screening options, including burn-in and environmental testing, to ensure the module meets the necessary standards.
  • Vicor provides a comprehensive troubleshooting guide in the module's datasheet and application notes. Additionally, Vicor's technical support team is available to assist with troubleshooting and provide guidance on resolving common issues.
