Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, a heat sink or thermal interface material can be used to further improve thermal performance.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a voltage supervisor to monitor the input voltage. Additionally, a minimum input capacitance of 10uF is recommended to filter out noise and ensure stable operation.
The V28C12T100BG can tolerate up to 10% input voltage ripple and noise, but Vicor recommends keeping it below 5% to ensure optimal performance and reliability.
Yes, the V28C12T100BG is designed for high-reliability applications and can operate up to 100°C ambient temperature. However, Vicor recommends derating the output power and consulting with their application engineers for specific guidance on high-reliability applications.
The V28C12T100BG has built-in thermal monitoring and fault detection. Vicor recommends using the module's temperature sense pin to monitor the temperature, and the fault pin to detect over-temperature, over-voltage, and under-voltage conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V28C12T100BG Overview

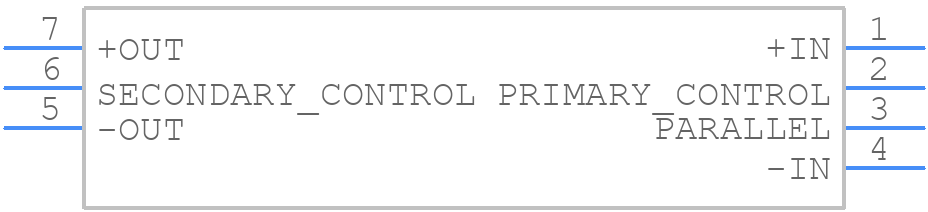

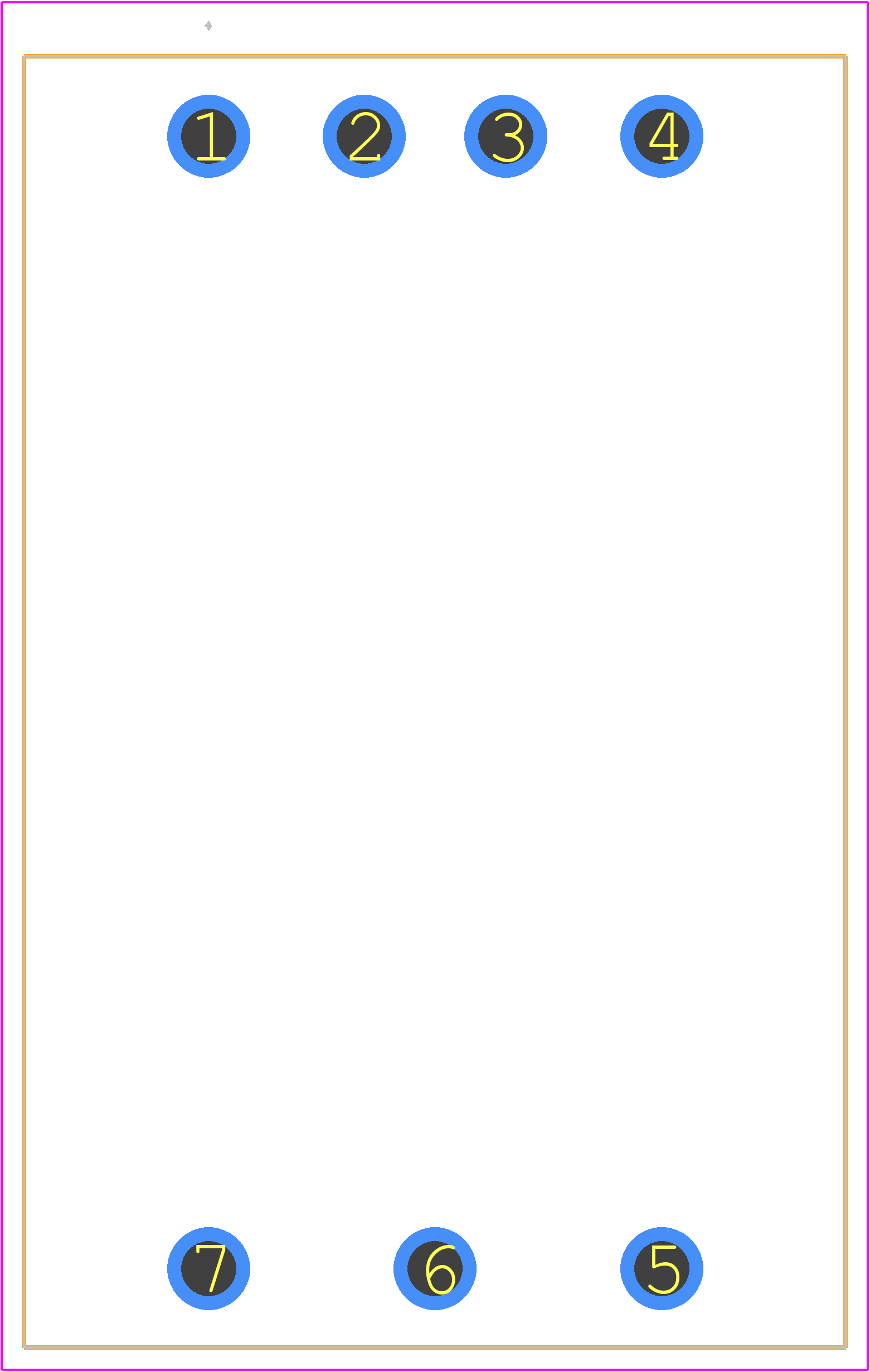

Use the download button to access the V28C12T100BG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V28C1,
or try a keyword search, such as Power Supply Modules
