V28C15C100BL - VICOR

V28C15C100BL Details

• Manufacturer Part Number:

  V28C15C100BL

• Pbfree Code:

  No

• Part Life Cycle Code:

  Active

• Part Package Code:

  MODULE

• Package Description:

  PACKAGE-7

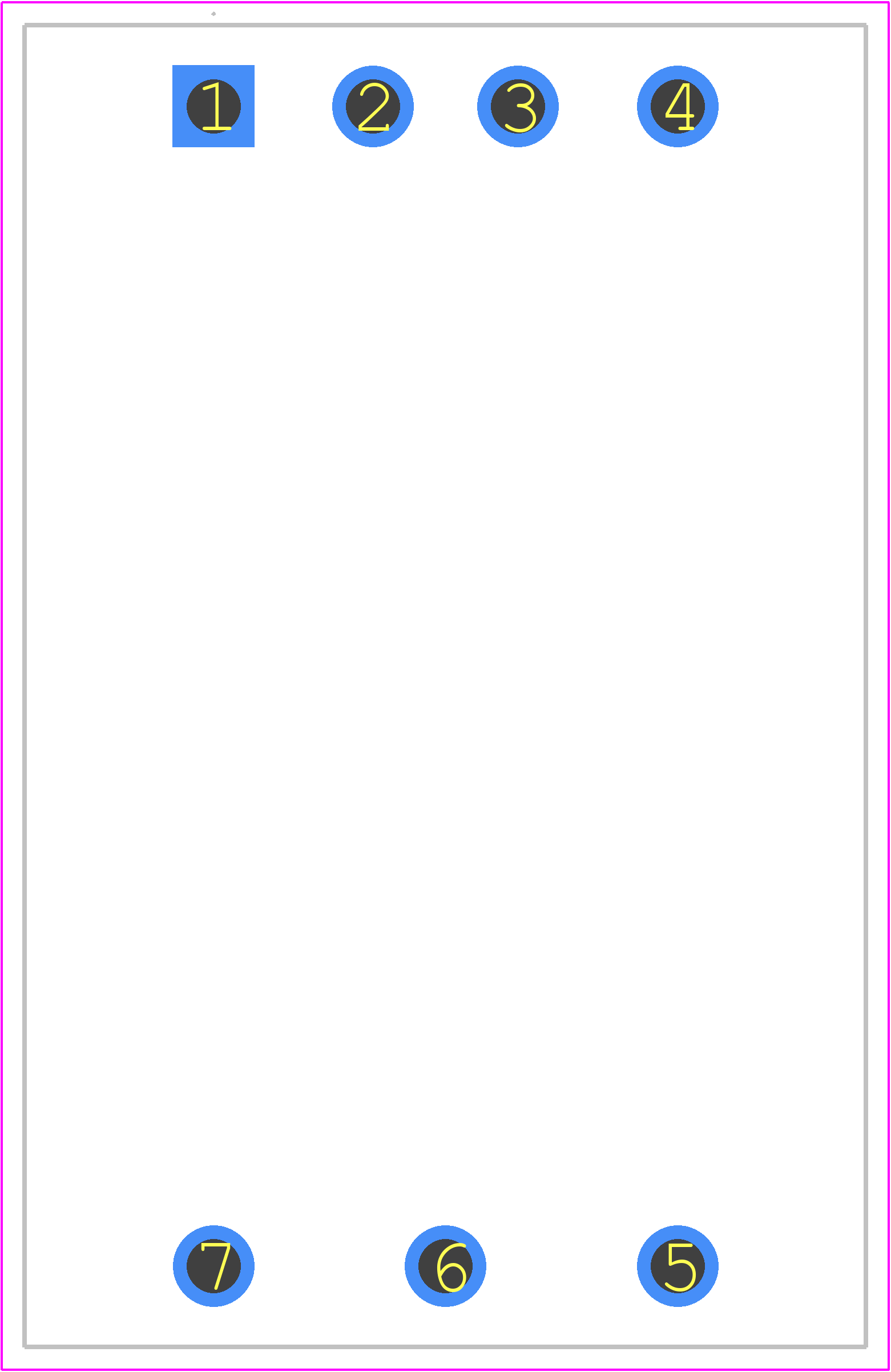

• Pin Count:

  7

• ECCN Code:

  EAR99

• Factory Lead Time:

  22 Weeks

• Manufacturer:

  Vicor Corporation

• YTEOL:

  6

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Control Mode:

  VOLTAGE-MODE

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  28 V

• JESD-30 Code:

  R-XDMA-P7

• JESD-609 Code:

  e0

• Length:

  57.91 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -20 °C

• Output Voltage-Max:

  16.5 V

• Output Voltage-Min:

  1.5 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DFM

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  13.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  100 W

• Trim/Adjustable Output:

  YES

• Width:

  36.83 mm
