V28C24T100BL - VICOR

Description: Isolated DC/DC Converters Watts- 100 Vin 28 Vout 24 Grade - T

Download V28C24T100BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

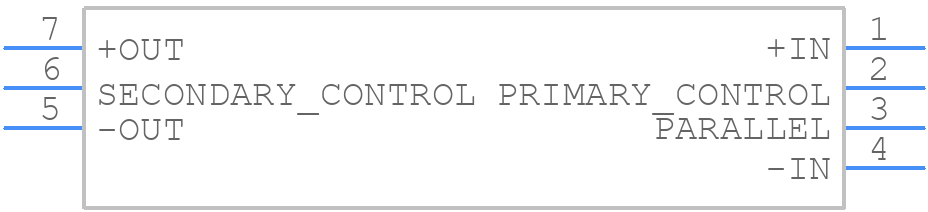

Symbol
V28C24T100BL - VICOR - PCB symbol
click to zoom

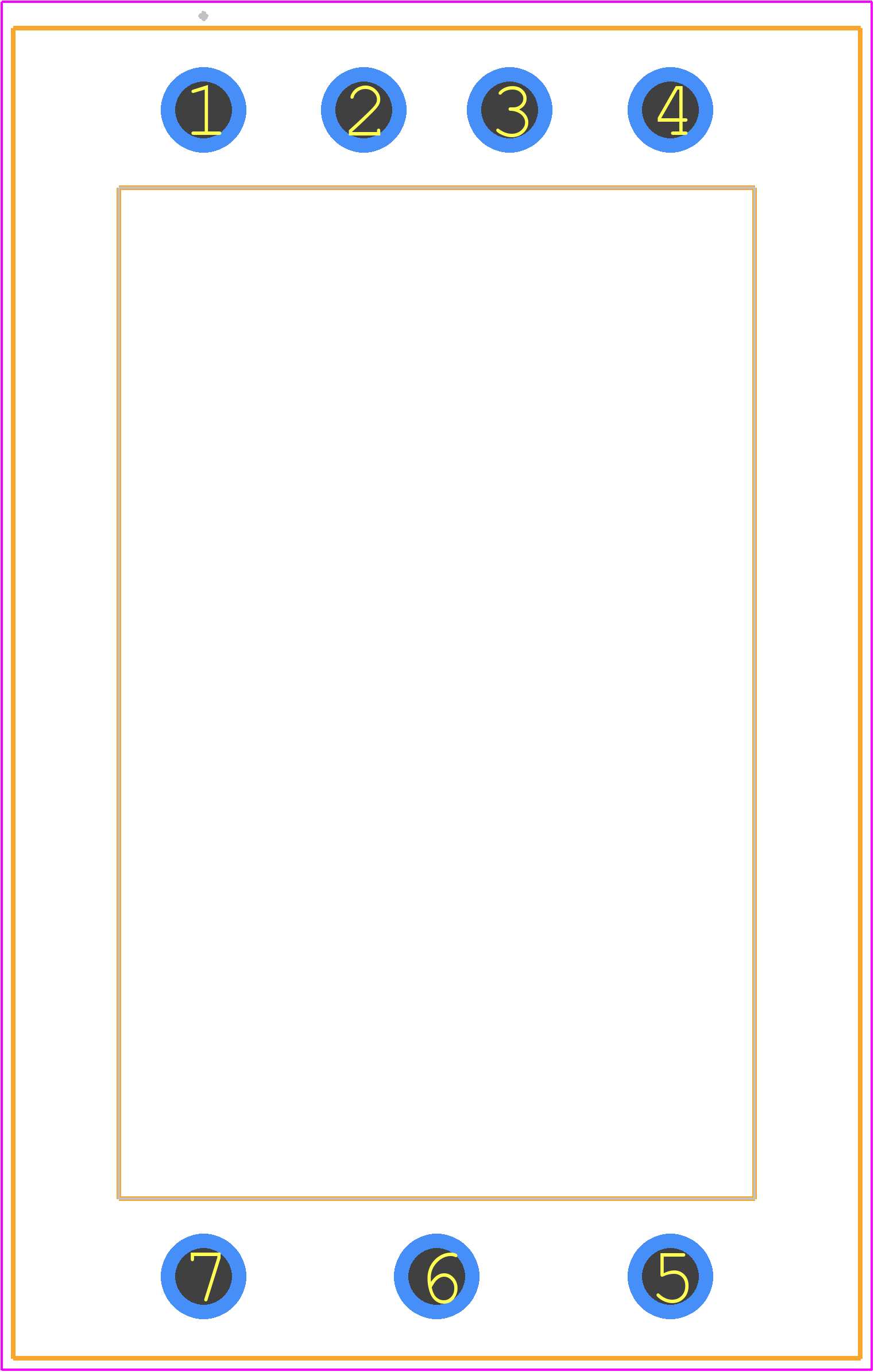

PCB Footprints
V28C24T100BL - VICOR PCB footprint - Other - Other - V28C24T100BL-1
click to zoom
3D Models
V28C24T100BL - VICOR - 3D model - Other - V28C24T100BL-1
click to zoom

V28C24T100BL Details

  • Manufacturer Part Number:

    V28C24T100BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDMA-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    2.4 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    100 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V28C24T100BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-vibration environments, Vicor recommends using a secure mounting method, such as screwing or clipping the module to the PCB, and ensuring that the PCB is properly secured to the chassis or enclosure.
  • The maximum allowable capacitance for the output filter is 100uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • No, the input voltage range is specified in the datasheet and should not be exceeded. Operating the module outside of the specified input voltage range may cause damage or affect the reliability of the module.
  • To troubleshoot output voltage deviations or instability, check the input voltage, output load, and PCB layout for any issues. Ensure that the module is properly mounted and that the output filter is within the recommended specifications.
