Part Image

V28C5M50BL3 - VICOR

Description: DC DC CONVERTER 5V 50W

Download V28C5M50BL3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

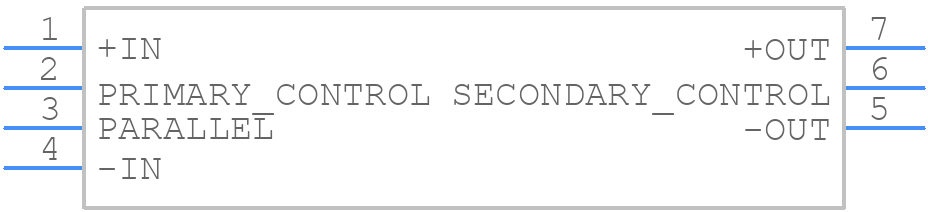

V28C5M50BL3 - VICOR - PCB symbol
click to zoom
PCB Footprints

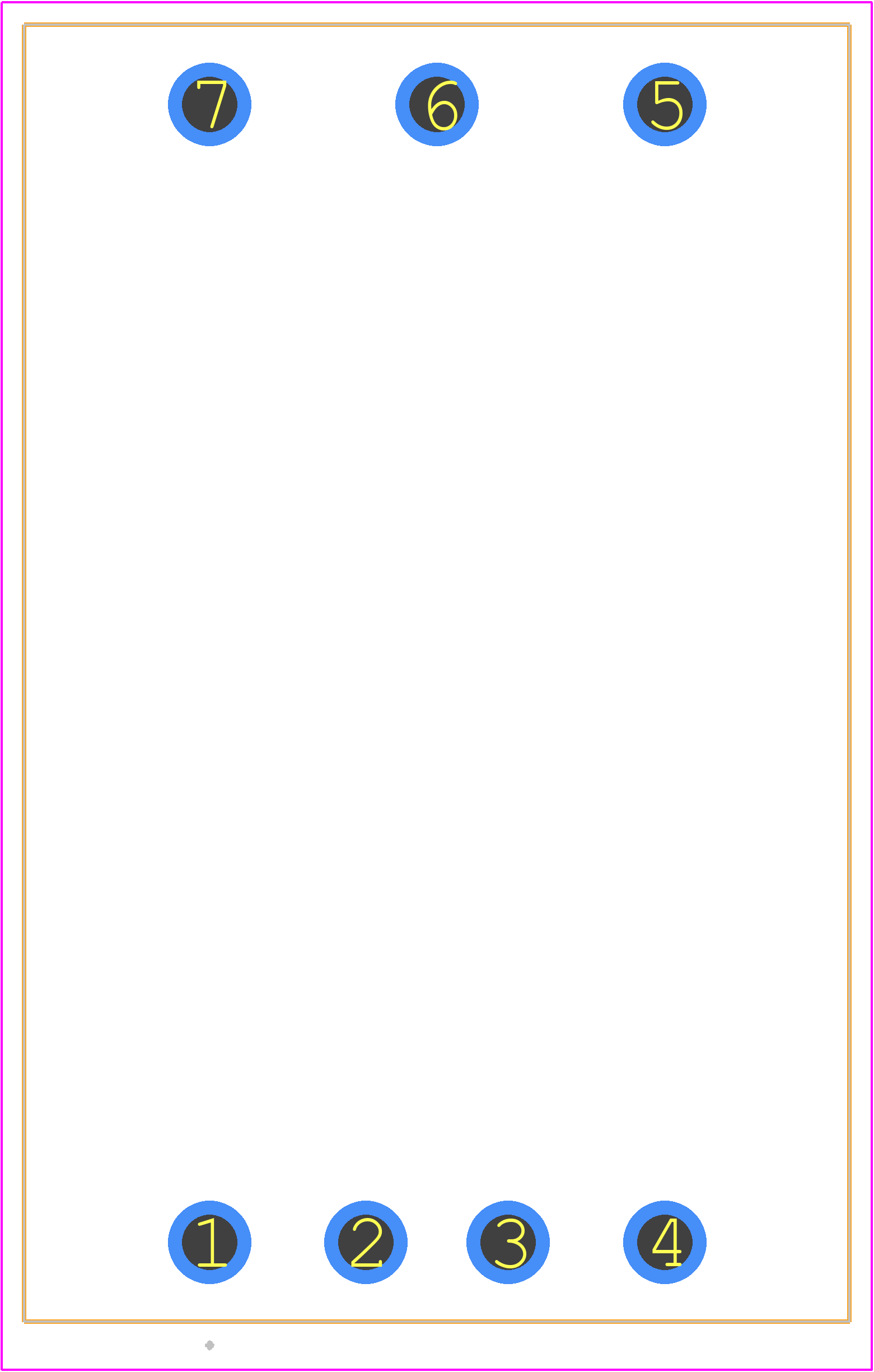

V28C5M50BL3 - VICOR PCB footprint - Other - Other - V28C5M50BL3-1
click to zoom
3D Models
V28C5M50BL3 - VICOR - 3D model - Other - V28C5M50BL3-1
click to zoom

V28C5M50BL3 Details

  • Manufacturer Part Number:

    V28C5M50BL3

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    28 V

  • JESD-30 Code:

    R-XDMA-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    50 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V28C5M50BL3 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design and layout guidelines in their application notes and whitepapers. It's essential to follow these guidelines to ensure proper thermal management, decoupling, and signal integrity.
  • Vicor recommends using low-ESR capacitors with a voltage rating of at least 2x the input voltage. The output capacitor should be selected based on the output voltage and current requirements. Refer to the datasheet and application notes for more information.
  • The V28C5M50BL3 module is rated for operation from -40°C to +100°C. However, derating may be necessary for high-temperature applications. Consult the datasheet and Vicor's thermal management guidelines for more information.
  • Vicor provides guidance on EMC and EMI compliance in their application notes and whitepapers. It's essential to follow proper PCB layout, shielding, and filtering techniques to ensure compliance with relevant standards.
  • The V28C5M50BL3 module has a typical efficiency of around 90% at full load. Efficiency varies with load and input voltage, but Vicor provides detailed efficiency curves in the datasheet and application notes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V28C5M50BL3 Overview

Use the download button to access the V28C5M50BL3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V28C5, or try a keyword search, such as Power Supply Modules
