V300A12T500BL footprint, schematic symbol and 3D model by VICOR

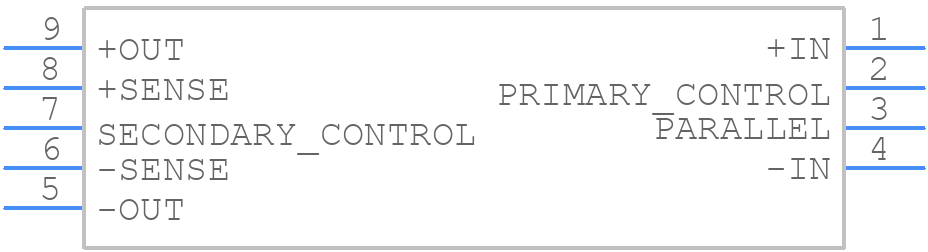

Symbol

click to zoom

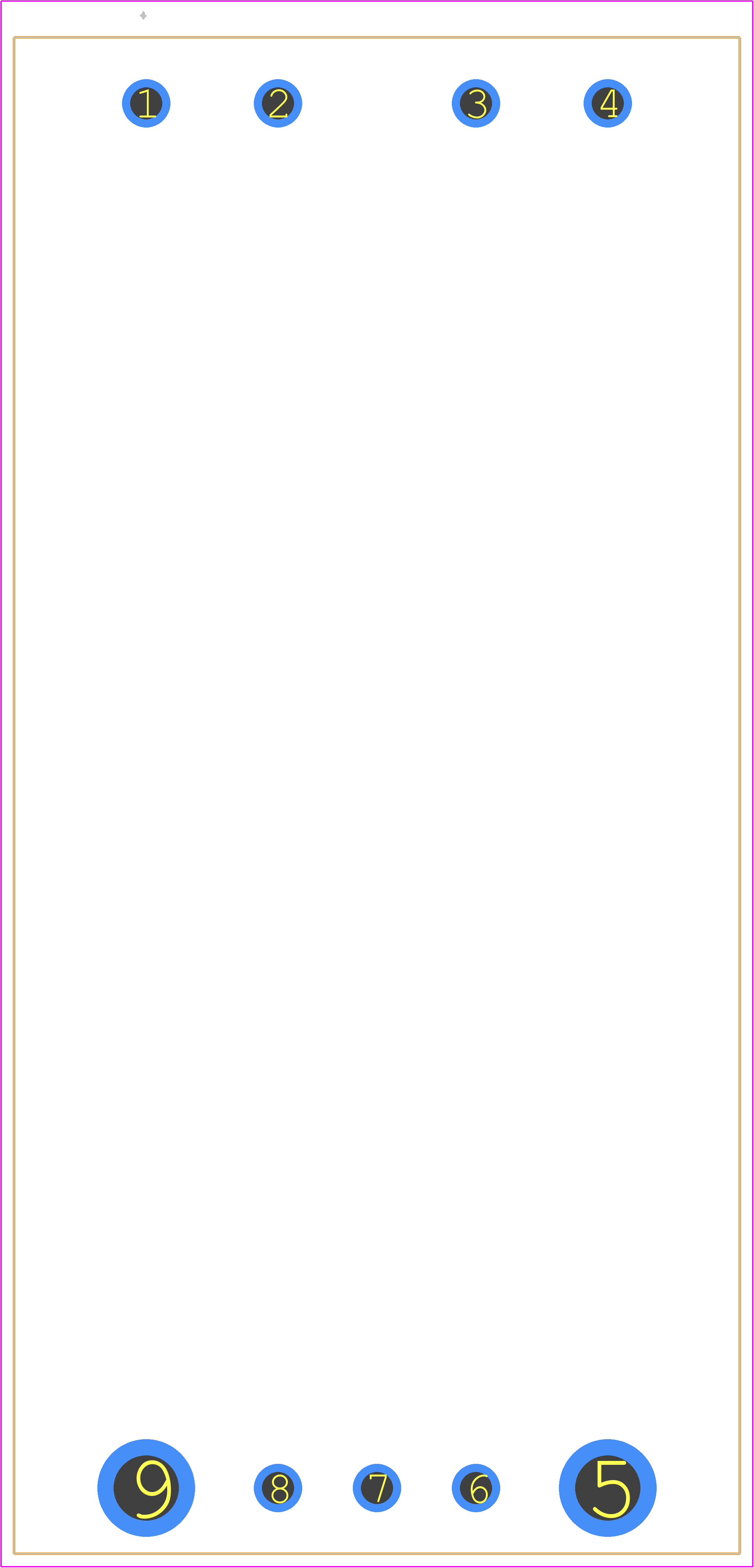

PCB Footprints

V300A12T500BL - VICOR PCB footprint - Other - Other - V300A12T500BL-1

click to zoom

3D Models

V300A12T500BL - VICOR - 3D model - Other - V300A12T500BL-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for V300A12T500BL
Part Number V300A12T500BL
Manufacturer VICOR
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - V300A12T500BL-1
Released Date Jan 13, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

V300A12T500BL Details

Manufacturer Part Number:
V300A12T500BL
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Package Description:
PACKAGE-9
Pin Count:
9
ECCN Code:
EAR99
Factory Lead Time:
22 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
5.48
Additional Feature:
REMOTE SHUTDOWN
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
UL, TUV, CE
Efficiency (Main Output):
86%
Input Voltage-Max:
375 V
Input Voltage-Min:
180 V
Input Voltage-Nom:
300 V
JESD-30 Code:
R-XDFM-P9
JESD-609 Code:
e0
Length:
116.84 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
60.6 A
Output Voltage-Max:
13.2 V
Output Voltage-Min:
1.2 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DFM
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
500 W
Trim/Adjustable Output:
YES
Width:
55.88 mm

V300A12T500BL Frequently Asked Questions (FAQs)

The maximum operating temperature range for the V300A12T500BL is -40°C to +100°C, with a derating of 1.5% per °C above 80°C.
Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring that the module is mounted on a thermally conductive surface. Vicor recommends a minimum airflow of 200 LFM (linear feet per minute) and a maximum thermal resistance of 1.5°C/W.
Vicor recommends a minimum input capacitance of 100 μF, with an ESR (Equivalent Series Resistance) of ≤ 0.1 Ω, to ensure stable operation and minimize input ripple.
Yes, the V300A12T500BL is designed to meet the requirements of high-reliability and military applications. It is built with high-reliability components, and Vicor offers various screening options, including burn-in and environmental testing, to ensure the module meets the required standards.
Vicor provides a troubleshooting guide in the module's datasheet, which covers common issues and their possible causes. Additionally, Vicor's application support team can be contacted for further assistance and guidance.
