V300C12T150BL - VICOR

Description: Isolated DC/DC Converters Watts- 150 Vin 300 Vout 12 Grade - T

Download V300C12T150BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

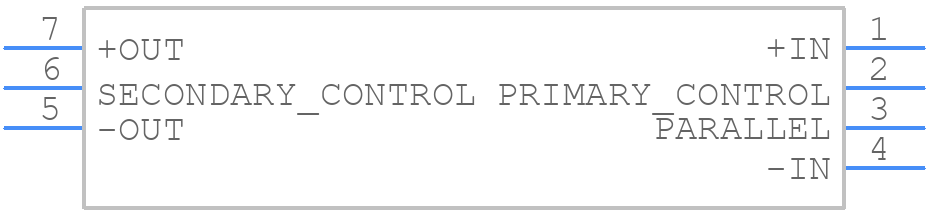

V300C12T150BL - VICOR - PCB symbol
click to zoom
PCB Footprints

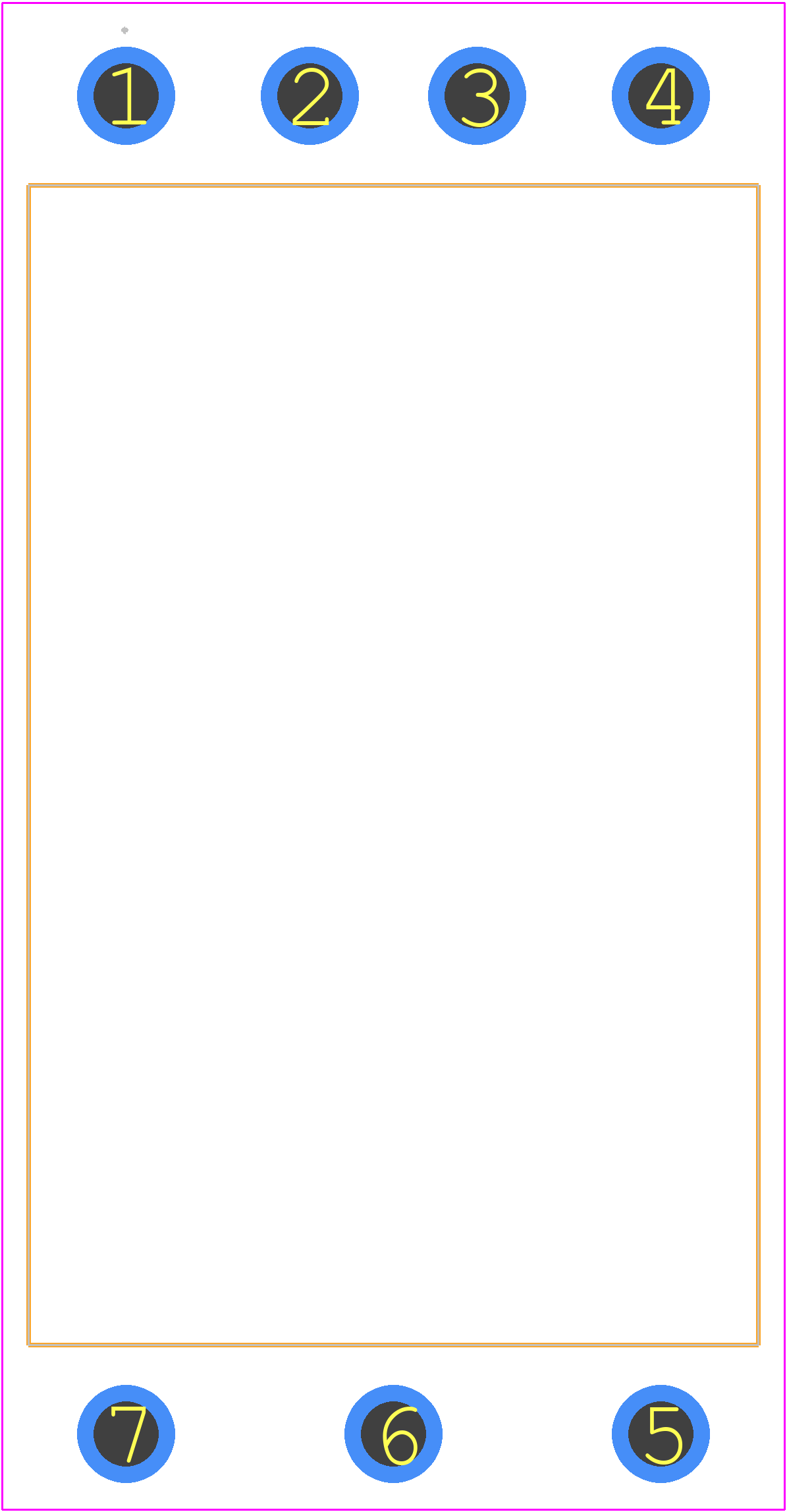

V300C12T150BL - VICOR PCB footprint - Other - Other - V300C12T150BL-2
click to zoom
3D Models
V300C12T150BL - VICOR - 3D model - Other - V300C12T150BL-2
click to zoom

V300C12T150BL Details

  • Manufacturer Part Number:

    V300C12T150BL

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    375 V

  • Input Voltage-Min:

    180 V

  • Input Voltage-Nom:

    300 V

  • JESD-30 Code:

    R-XDMA-P7

  • JESD-609 Code:

    e0

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    1.2 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V300C12T150BL Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a shutdown circuit to discharge the output capacitors. Consult the Vicor application note for details.
  • The V300C12T150BL is designed to operate within a specific input voltage range. Operating outside this range may affect efficiency, output voltage regulation, and reliability. Consult the datasheet for the recommended input voltage range.
  • Vicor recommends using an oscilloscope to monitor the input and output voltages, and a current probe to measure the input current. Consult the Vicor application note for troubleshooting guidelines.
  • The V300C12T150BL is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. However, proper PCB layout, shielding, and filtering may be required to meet specific application requirements.
