V300C24T150BN - VICOR

Description: Isolated DC/DC Converters - Through Hole Micro Family Vin-300 Vout-24, Power-150

Download V300C24T150BN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

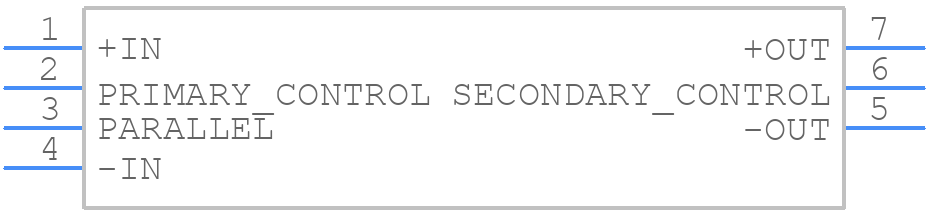

V300C24T150BN - VICOR - PCB symbol
click to zoom
PCB Footprints

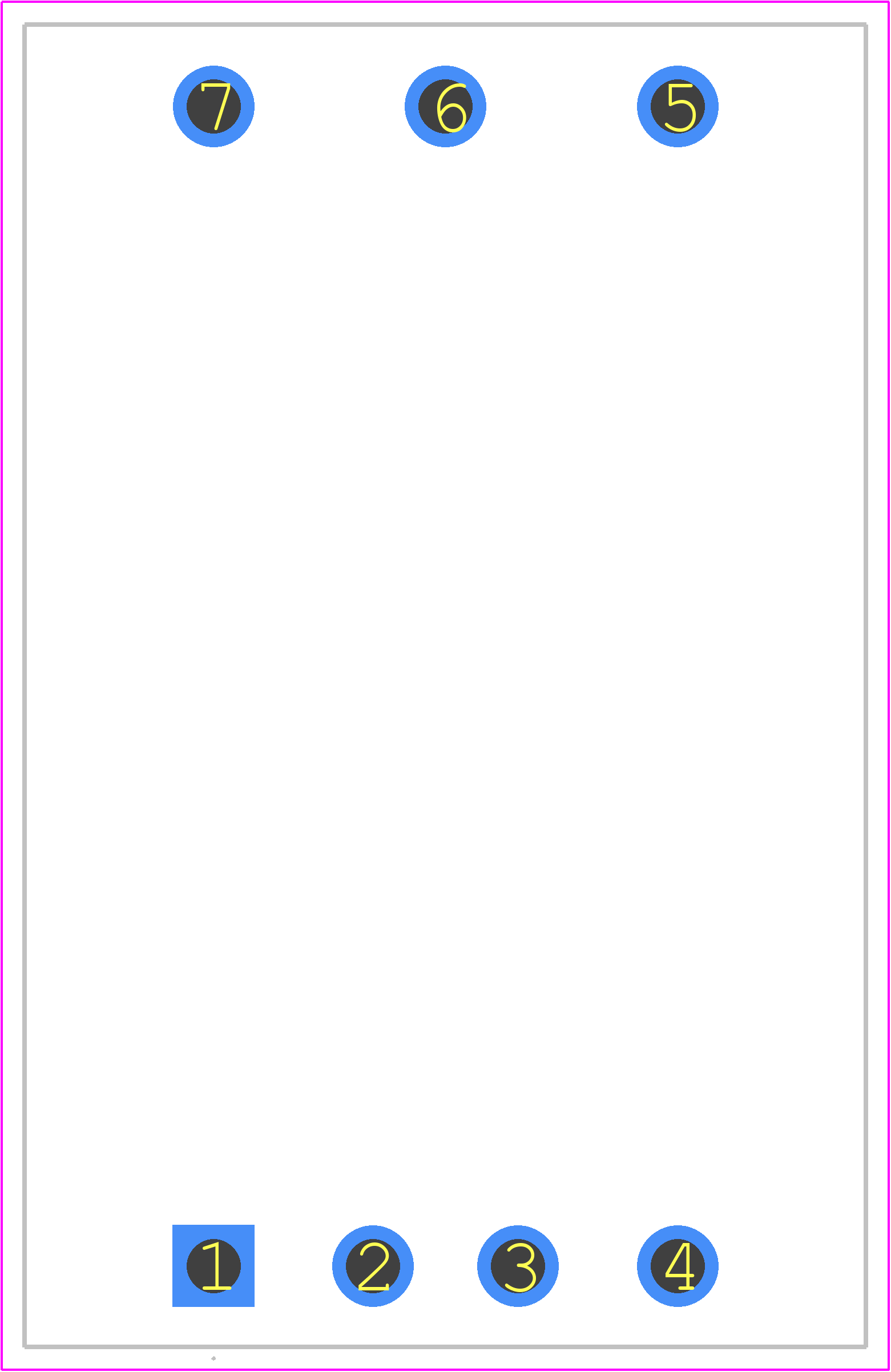

V300C24T150BN - VICOR PCB footprint - Other - Other - V300C24T150BN-3
click to zoom
3D Models
V300C24T150BN - VICOR - 3D model - Other - V300C24T150BN-3
click to zoom

V300C24T150BN Details

  • Manufacturer Part Number:

    V300C24T150BN

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Package Description:

    PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    375 V

  • Input Voltage-Min:

    180 V

  • Input Voltage-Nom:

    300 V

  • JESD-30 Code:

    R-XDMA-P7

  • JESD-609 Code:

    e4

  • Length:

    57.91 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.3%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    2.4 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DFM

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au)

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    150 W

  • Trim/Adjustable Output:

    YES

  • Width:

    36.83 mm

V300C24T150BN Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the V300C24T150BN is -40°C to +100°C, with a derating of 1.5% per °C above 80°C.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring the module is mounted on a thermally conductive surface. Vicor recommends a minimum airflow of 200 LFM (linear feet per minute) and a maximum junction temperature of 125°C.
  • Vicor recommends a minimum input capacitance of 100 μF, with a maximum ESR (Equivalent Series Resistance) of 0.1 Ω, to ensure stable operation and minimize input ripple.
  • Yes, the V300C24T150BN is designed to meet the requirements of high-reliability and military applications. It is built with high-quality components and undergoes rigorous testing to ensure its performance and reliability in demanding environments.
  • Vicor provides a troubleshooting guide in the module's datasheet, which covers common issues such as output voltage deviations, overcurrent protection, and thermal shutdown. Additionally, Vicor's application support team is available to assist with troubleshooting and design support.
