V300SM20 Frequently Asked Questions (FAQs)

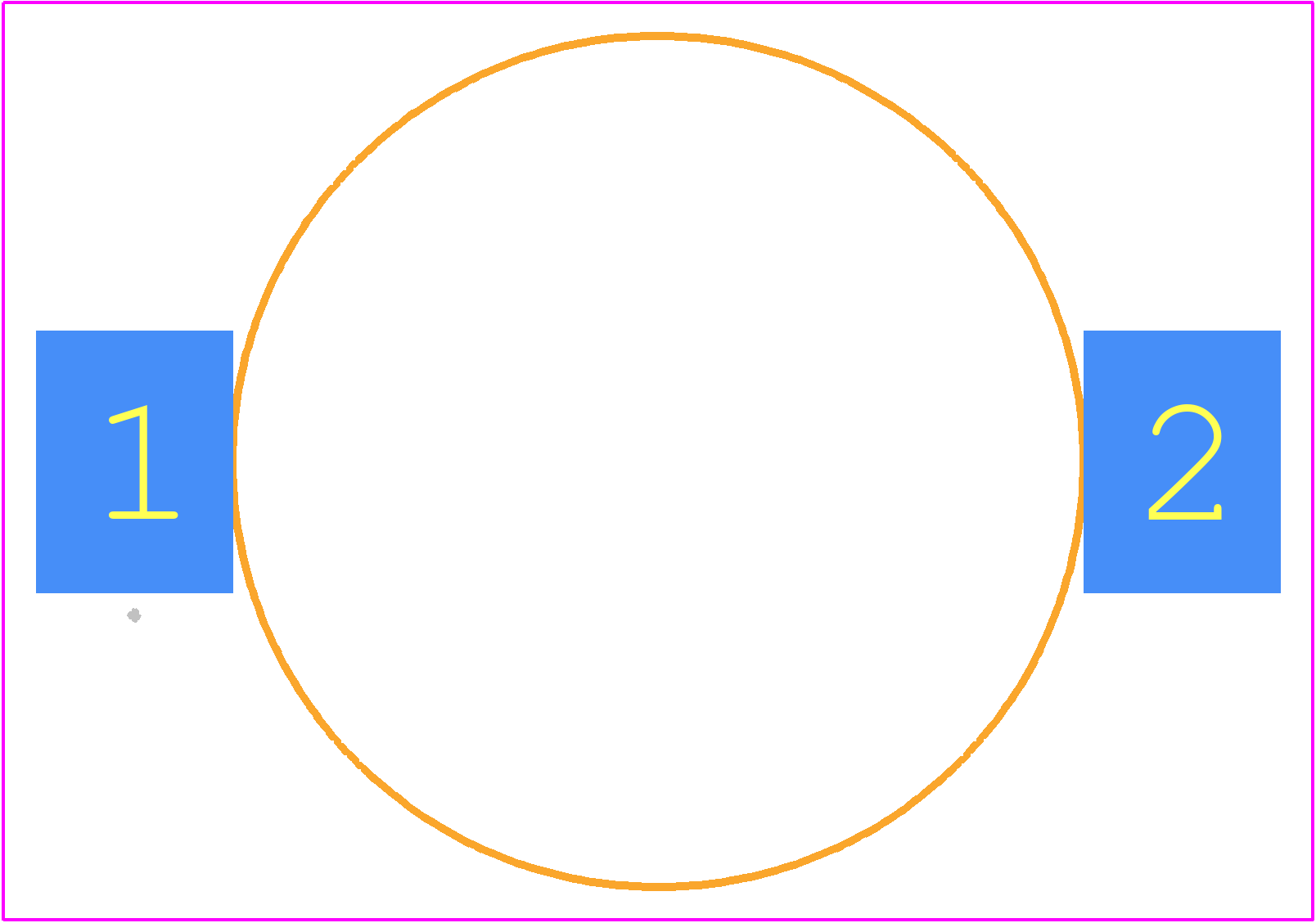

• What is the recommended PCB footprint for the V300SM20?
  The recommended PCB footprint for the V300SM20 is a rectangular pad with dimensions of 12.7mm x 7.62mm, with a 1.27mm x 1.27mm thermal pad in the center. The pad should be solder-mask defined and have a non-solder-mask-defined area of 1.27mm x 1.27mm for the thermal tab.
• How do I ensure reliable soldering of the V300SM20?
  To ensure reliable soldering of the V300SM20, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Use a reflow oven with a peak temperature of 240°C to 250°C, and a dwell time of 30 seconds to 60 seconds. Avoid using wave soldering or hand soldering, as it may damage the device.
• What is the maximum allowed voltage imbalance between the input and output of the V300SM20?
  The maximum allowed voltage imbalance between the input and output of the V300SM20 is ±10% of the nominal input voltage. Exceeding this limit may cause the device to malfunction or fail.
• Can I use the V300SM20 in a high-temperature environment?
  The V300SM20 is rated for operation up to 150°C, but it's recommended to derate the device's current rating by 1.5% per degree Celsius above 125°C. Ensure that the device is properly heat-sinked and that the ambient temperature does not exceed 150°C.
• How do I troubleshoot a faulty V300SM20?
  To troubleshoot a faulty V300SM20, check the input and output voltages, and ensure that they are within the specified range. Verify that the device is properly soldered and that there are no signs of physical damage. Check the PCB layout and ensure that it meets the recommended footprint and thermal design guidelines. If the issue persists, contact Littelfuse Inc. for further assistance.
