V33ZA2P - LITTELFUSE

Description: 33 V 500 A Varistor 1 Circuit Through Hole Disc 10mm , 3495 pF @ 1 MHz , -55°C ~ 85°C (TA)

Download V33ZA2P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

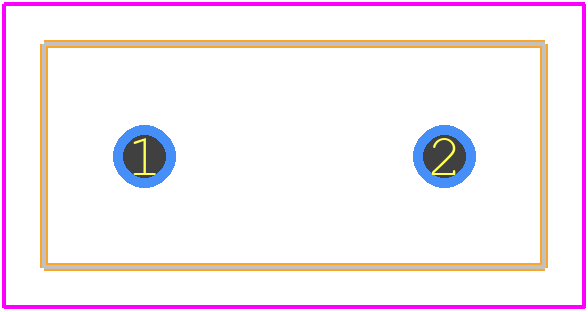

V33ZA2P - LITTELFUSE PCB footprint - Other - Other - Disc=10mm
click to zoom
3D Models
V33ZA2P - LITTELFUSE  - 3D model - Other - Disc=10mm
click to zoom

V33ZA2P Details

  • Manufacturer Part Number:

    V33ZA2P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8

  • Circuit RMS Voltage-Max:

    20 V

  • Energy Absorbing Capacity-Max:

    3 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    16 mm

  • Package Length:

    12.5 mm

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Package Width:

    5 mm

  • Packing Method:

    BULK

  • Rated Temperature:

    85 °C

  • Reference Standard:

    CECC; CUL; UL; VDE

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Terminal Finish:

    TIN

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Working Voltage:

    26 V
