V33ZA5P - LITTELFUSE

Description: Littelfuse ZA Series Metal Oxide Varistor 9.29nF 10A, Clamping 65V, Varistor 36.5V

Download V33ZA5P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
V33ZA5P - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

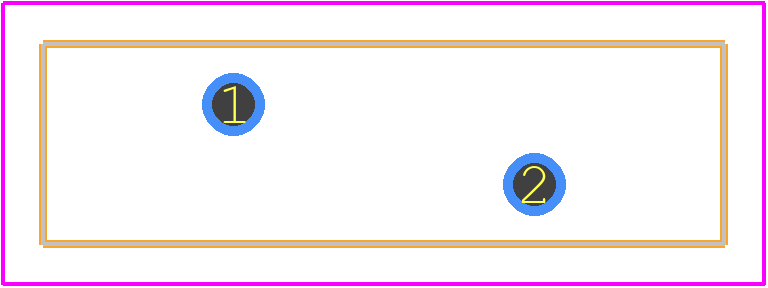

V33ZA5P - LITTELFUSE PCB footprint - Other - Other - V33ZA5P-2
click to zoom
3D Models
V33ZA5P - LITTELFUSE - 3D model - Other - V33ZA5P-2
click to zoom

V33ZA5P Details

  • Manufacturer Part Number:

    V33ZA5P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    8

  • Circuit RMS Voltage-Max:

    20 V

  • Energy Absorbing Capacity-Max:

    6 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    20 mm

  • Package Length:

    17 mm

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Package Width:

    5 mm

  • Packing Method:

    BULK

  • Rated Temperature:

    85 °C

  • Reference Standard:

    CECC; CUL; UL; VDE

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Terminal Finish:

    TIN

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Working Voltage:

    26 V

V33ZA5P Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the V33ZA5P is a rectangular pad with a minimum size of 2.5mm x 1.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
  • To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste or flux to the pads. Avoid overheating or applying excessive force, which can damage the component.
  • The maximum operating temperature range for the V33ZA5P is -40°C to 125°C, with a maximum storage temperature range of -40°C to 150°C.
  • Yes, the V33ZA5P is suitable for high-reliability and aerospace applications, as it meets the requirements of MIL-PRF-19500 and is manufactured in accordance with NASA's outgassing standards.
  • Handle the V33ZA5P by the body, avoiding touching the leads or pads. Store the components in their original packaging or in a dry, cool place, away from direct sunlight and moisture.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

V33ZA5P Overview

Use the download button to access the V33ZA5P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V33ZA, or try a keyword search, such as Varistor
