V33ZA70P - LITTELFUSE

Description: Metal-Oxide Varistor 27Vrms ZA Littelfuse ZA Series Metal Oxide Varistor 13nF 20A 58V

Download V33ZA70P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
V33ZA70P - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

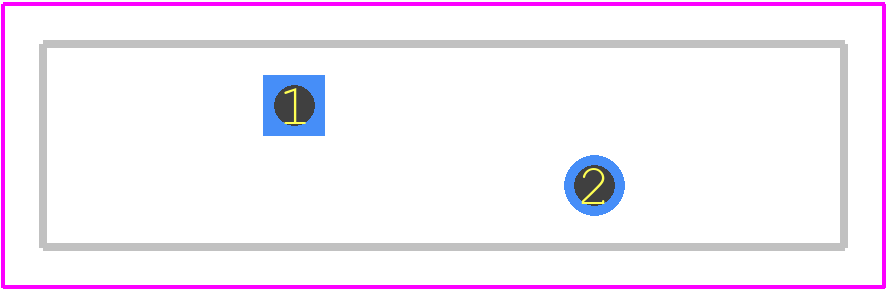

V33ZA70P - LITTELFUSE PCB footprint - Other - Other - V33ZA70P
click to zoom
3D Models
V33ZA70P - LITTELFUSE - 3D model - Other - V33ZA70P
click to zoom

V33ZA70P Details

  • Manufacturer Part Number:

    V33ZA70P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7.75

  • Circuit RMS Voltage-Max:

    21 V

  • Energy Absorbing Capacity-Max:

    100 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    26.5 mm

  • Package Length:

    23 mm

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Package Width:

    5 mm

  • Packing Method:

    BULK

  • Rated Temperature:

    85 °C

  • Reference Standard:

    CECC; CUL; UL; VDE

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Working Voltage:

    27 V
