V375A48T600BL3 footprint, schematic symbol and 3D model by VICOR

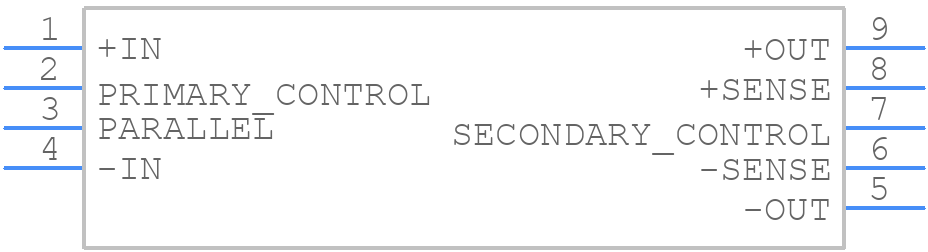

Symbol

click to zoom

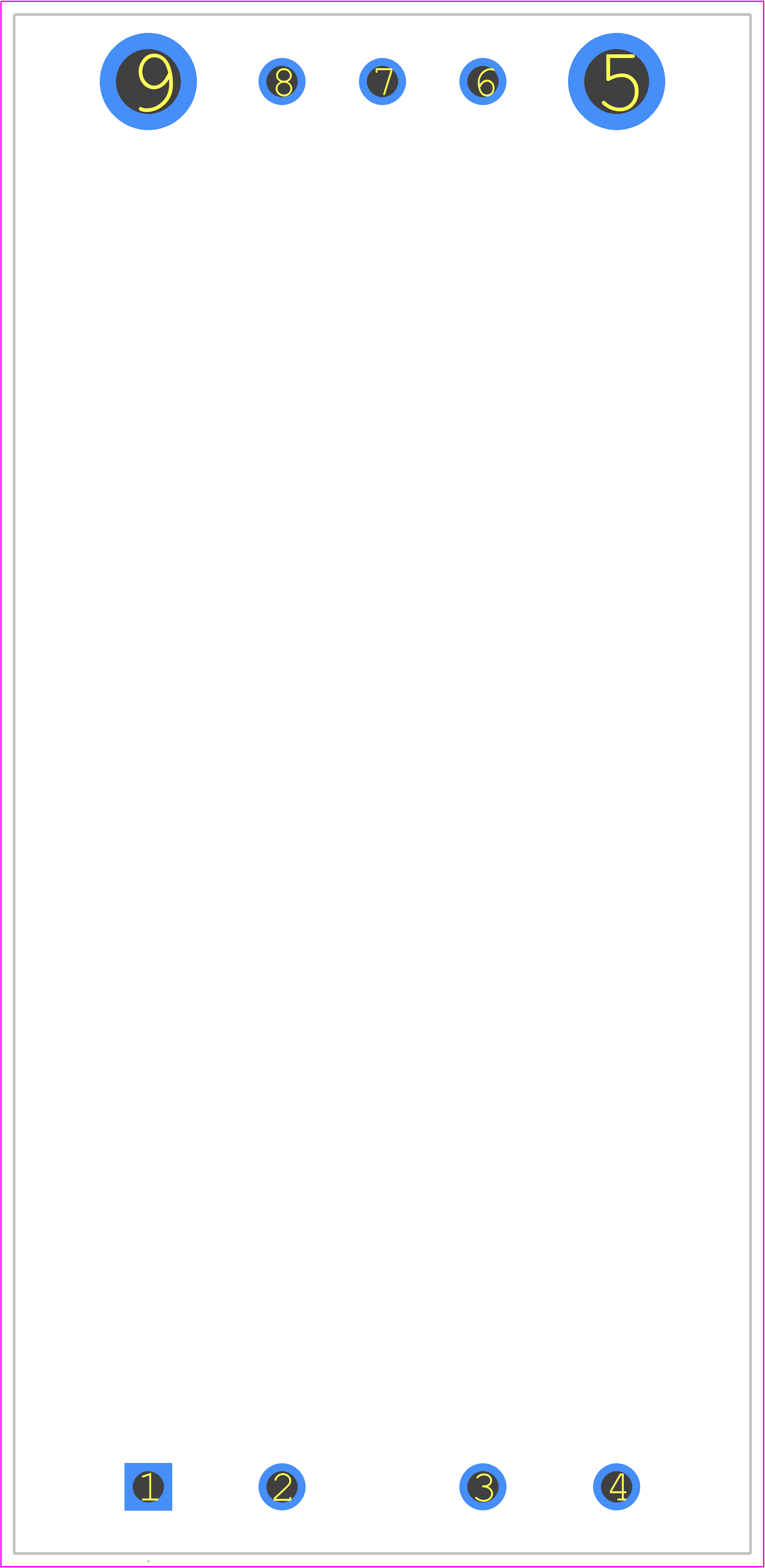

PCB Footprints

V375A48T600BL3 - VICOR PCB footprint - Other - Other - V375A48T600BL3-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for V375A48T600BL3
Part Number V375A48T600BL3
Manufacturer VICOR
Pin Count 9
Part Category Power Supply
Package Category Other
Footprint Name Other - V375A48T600BL3-1
Released Date Jun 2, 2026
Last Modified Date Jun 2, 2026 12:03 PM UTC
Pinout / Pin List Click Here (Member Only)

V375A48T600BL3 Details

Manufacturer Part Number:
V375A48T600BL3
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Package Description:
PACKAGE-9
Pin Count:
9
ECCN Code:
EAR99
Factory Lead Time:
22 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, UKCA
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
88.5%
Input Voltage-Max:
425 V
Input Voltage-Min:
250 V
Input Voltage-Nom:
375 V
JESD-30 Code:
R-XDFM-P9
JESD-609 Code:
e0
Length:
116.84 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.25%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
12.5 A
Output Voltage-Max:
52.8 V
Output Voltage-Min:
4.8 V
Output Voltage-Nom:
48 V
Package Body Material:
UNSPECIFIED
Package Code:
DFM
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Ripple Voltage (Main Out):
0.123 Vrms
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
600 W
Trim/Adjustable Output:
YES
Width:
55.88 mm

V375A48T600BL3 Frequently Asked Questions (FAQs)

The maximum operating temperature range for the V375A48T600BL3 is -40°C to +125°C, with a derated output power above 100°C.
Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring the module is mounted to a suitable thermal interface material. Vicor recommends a minimum airflow of 200 LFM (linear feet per minute) and a heat sink with a thermal resistance of ≤ 1°C/W.
Vicor recommends a minimum input capacitance of 100 μF, with a voltage rating of at least 100 V, to ensure stable operation and minimize input ripple.
Yes, the V375A48T600BL3 can be used in a parallel configuration to increase output power. However, it's essential to ensure that the modules are properly synchronized and that the output currents are balanced to prevent uneven stress and potential reliability issues.
The typical efficiency of the V375A48T600BL3 is around 92% at full load, with a minimum efficiency of 90% over the entire operating range.

Trust Checks

Community Provided

System Verified

Community Approved

V375A48T600BL3 Overview

Use the download button to access the V375A48T600BL3 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like V375A, or try a keyword search, such as Power Supply Modules
