Vicor recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal pad on the top layer. A thermal interface material (TIM) should be used between the module and the heat sink. The heat sink should be designed to provide adequate airflow and thermal conduction.
To ensure reliable start-up and operation, Vicor recommends using a soft-start circuit to limit the inrush current and a bulk capacitor with a low equivalent series resistance (ESR) to minimize voltage droop. The output filter should be designed to meet the recommended output impedance and stability criteria.
Vicor provides derating factors for temperature, altitude, and input voltage in the datasheet. For example, the module's output power should be derated by 1% per degree Celsius above 40°C, and by 1% per 1,000 feet above sea level. The input voltage should be derated by 1% per volt below the minimum recommended input voltage.
Vicor recommends using a fault tree analysis to identify the root cause of a fault or failure. The module's built-in fault detection and protection features, such as overvoltage protection and overcurrent protection, can help diagnose the issue. Vicor also provides application notes and technical support to assist in troubleshooting and diagnosis.
The V375C24C75BL is designed to meet CISPR 22 Class B and FCC Part 15 Class B EMI standards. To ensure compliance, Vicor recommends using a shielded enclosure, minimizing loop areas, and using EMI filters and common-mode chokes as needed. The module's switching frequency and harmonics should be considered in the system design to minimize EMI and RFI.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
V375C24C75BL Overview

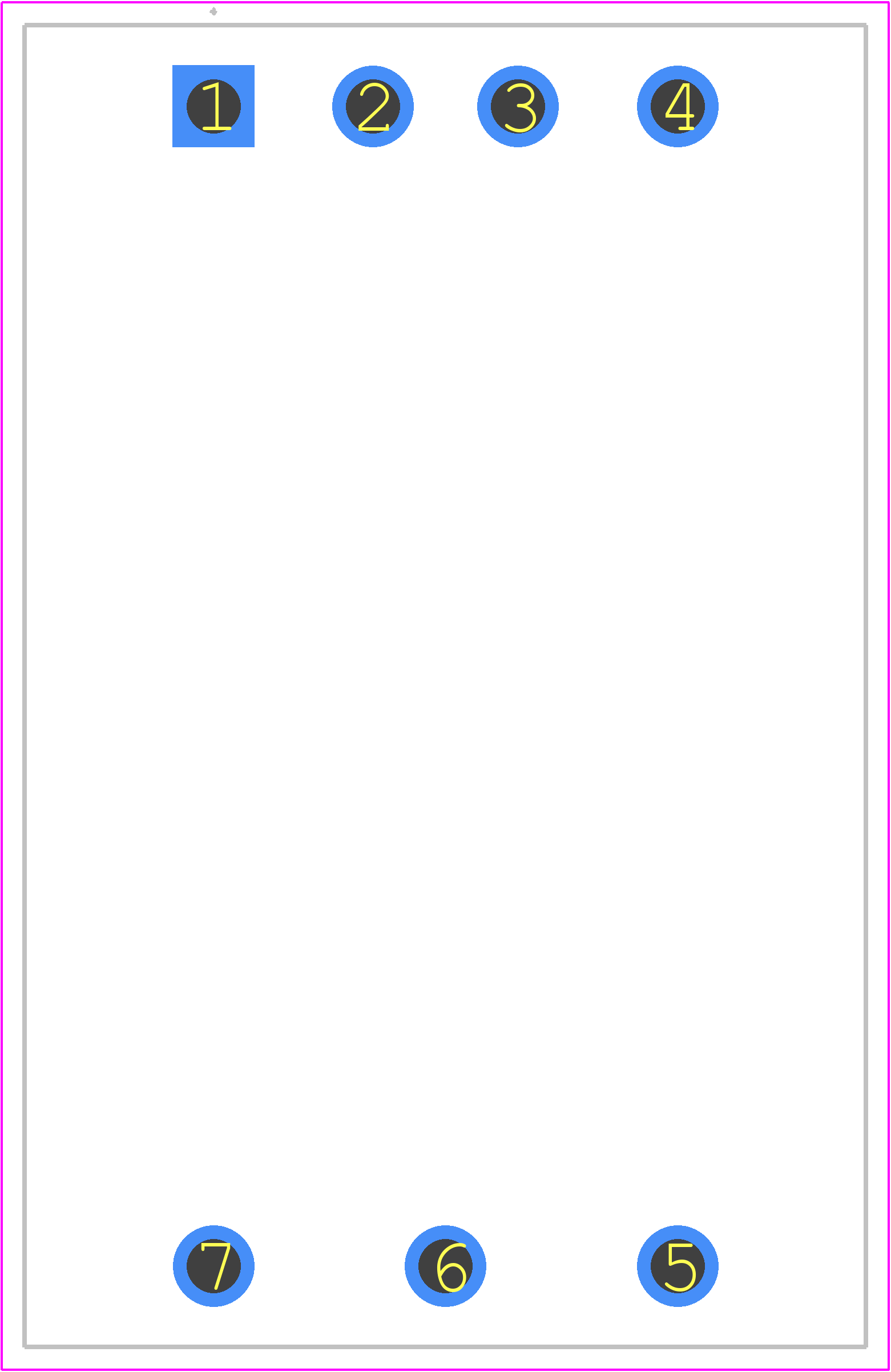

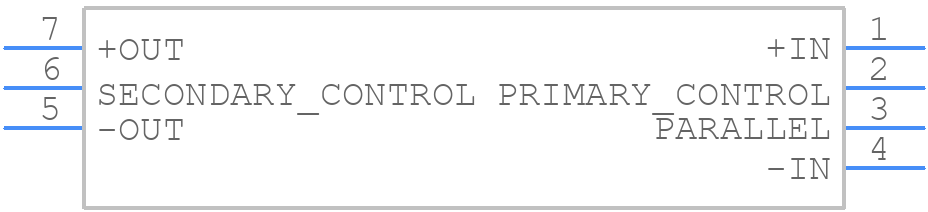

Use the download button to access the V375C24C75BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like V375C,
or try a keyword search, such as Power Supply Modules
