V375C36T150BL footprint, schematic symbol and 3D model by VICOR

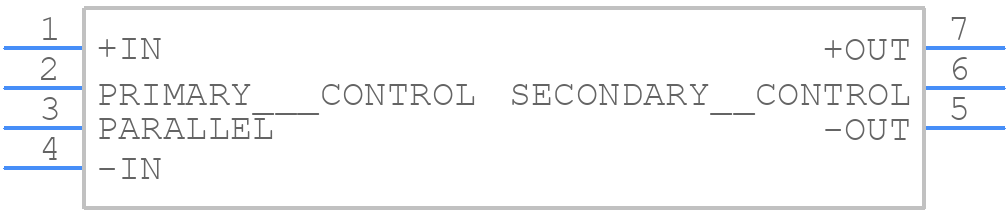

Symbol

click to zoom

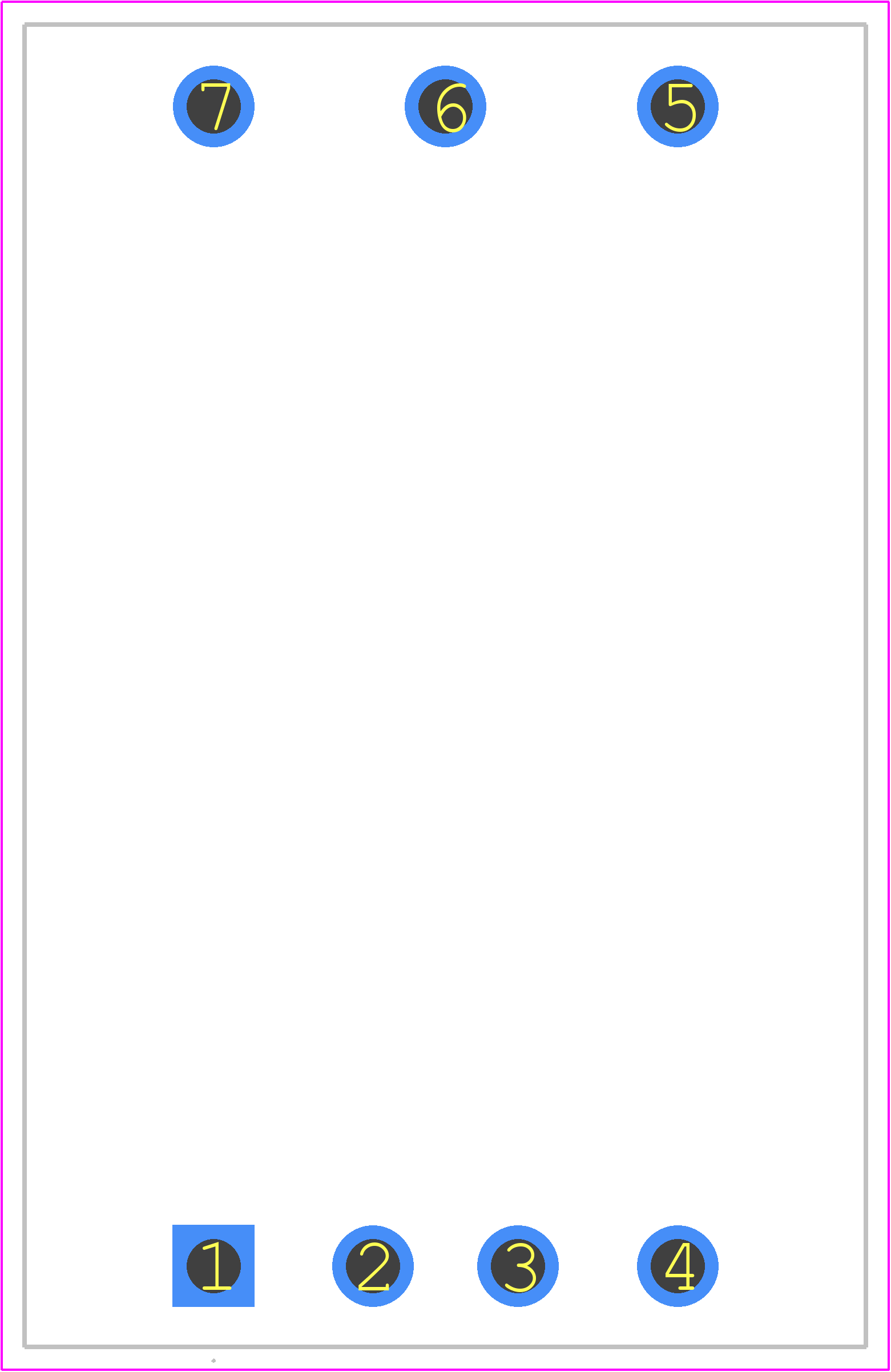

PCB Footprints

V375C36T150BL - VICOR PCB footprint - Other - Other - 36.83mm x 57.91_2024

click to zoom

3D Models

V375C36T150BL - VICOR - 3D model - Other - 36.83mm x 57.91_2024

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for V375C36T150BL
Part Number V375C36T150BL
Manufacturer VICOR
Pin Count 7
Part Category Power Supply
Package Category Other
Footprint Name Other - 36.83mm x 57.91_2024
Released Date Aug 30, 2024
Last Modified Date Aug 30, 2024 11:37 AM UTC
Pinout / Pin List Click Here (Member Only)

V375C36T150BL Details

Manufacturer Part Number:
V375C36T150BL
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
MODULE
Package Description:
PACKAGE-7
Pin Count:
7
ECCN Code:
EAR99
Factory Lead Time:
22 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CSA, UL
Efficiency (Main Output):
86%
Input Voltage-Max:
425 V
Input Voltage-Min:
250 V
Input Voltage-Nom:
375 V
JESD-30 Code:
R-XDFM-P7
JESD-609 Code:
e0
Length:
57.9 mm
Line Regulation-Max:
0.2%
Load Regulation-Max:
0.2%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
7
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4.17 A
Output Voltage-Max:
39.6 V
Output Voltage-Min:
3.6 V
Output Voltage-Nom:
36 V
Package Body Material:
UNSPECIFIED
Package Code:
DFM
Package Shape:
RECTANGULAR
Package Style:
FLANGE MOUNT
Qualification Status:
Not Qualified
Seated Height-Max:
13.2 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
150 W
Trim/Adjustable Output:
YES
Width:
36.83 mm

V375C36T150BL Frequently Asked Questions (FAQs)

The maximum operating temperature range for the V375C36T150BL is -40°C to +125°C, with a derating of output power above 100°C.
Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring the module is mounted on a thermally conductive surface. Vicor recommends a minimum airflow of 200 LFM (linear feet per minute) and a maximum thermal resistance of 1.5°C/W.
Vicor recommends a minimum input capacitance of 100 μF, with a maximum ESR of 0.1 Ω, to ensure stable operation and minimize input ripple.
Yes, the V375C36T150BL is designed to meet the requirements of high-reliability and military applications. It is built with high-quality components and undergoes rigorous testing to ensure its performance and reliability in demanding environments.
Vicor provides a troubleshooting guide in the module's datasheet, which covers common issues such as output voltage deviations, over-temperature shutdown, and input undervoltage lockout. Additionally, Vicor's application support team is available to assist with troubleshooting and design support.

Trust Checks

Community Provided

System Verified

Community Approved

V375C36T150BL Overview

Use the download button to access the V375C36T150BL schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like V375C, or try a keyword search, such as Power Supply Modules
